In Stock
Goal Zero Boulder 100 Briefcase Solar Charging Kit
Item Code: 44210
Ship Weight: 29 lbs.
Regular Price: $455.99
Prime Day: $424.95
You Save 7% ($31.04)
Product Details
A 100 watt solar charging system designed for maximum portability. The Boulder 100 Briefcase Solar Charging Kit includes two 50 watt panels connected with a hinge and a 10 amp charge controller to let you safely and efficiently charge 12V batteries. Includes integrated kickstands for better angle placement, as well as a handle and canvas bag for easy carrying.
Boulder 100 Briefcase Product Manual
10 Amp Charge Controller Manual
• | Includes Everything you Need!: Boulder 100 Briefcase Solar Charging Kit comes with a pre-installed 10A Charge Controller, integrated 8mm Goal Zero solar connector, Spade to SAE cable, and SAE to Alligator Clips plus SAE to Ring Terminal options for connecting to 12V batteries. No additional cables or accessories required. |
• | Compatible: To charge a Goal Zero Yeti Power Station with the Boulder 100 Solar Kit, you simply disconnect the female 8mm solar connector cable on the solar panel from the male 8mm solar connector cable on the charge controller and plug it into the 8mm input port on the Yeti. |
• | Versatile: The Boulder 100 can be used to power any Goal Zero recharger. For the amount of Watts it produces, it will be most effective with the Yeti 150, Yeti 400, Yeti 500X, Yeti 1250, Yeti 1400, Yeti 1500X, Sherpa 50 or Sherpa 100. |
• | Panel Canvas Case: Features Included protective canvas bag for easy carrying and storage! |
• | Optimal Solar Placement: Collapsible kickstands means no more leaning your Boulder Solar Panel against a rock, tree, or tent. Strong rubber corner protection leaves no sharp edges to catch. |
• | Long Lasting: Built with a lightweight, durable aluminum frame and tempered glass. Great panels for semi-permanent or permanent installations. |
• | Durable: The Boulder 100 Briefcase is waterproof and rugged terrain resistant. Create power on the Go with the Boulder 100 Briefcase Solar Panel. |
• | Semi Permanent Mount: Designed to work with traditional Z Brackets for quick and easy mounting. |
• | 10A Charge Controller: Monitor and regulate solar input for 12V batteries with the included 10 Amp Charge Controller. |
• | Rugged Charge Controller: Equipped with an IP65 rating, the charge controller is weather resistant and dustproof, allowing for protection against the elements when powering off-grid adventures or outdoor equipment. |
Specifications
Boulder 100 Briefcase Panel | |
Manufacturer: | Goal Zero |
Product Dimensions: | Unfolded: 26.75 x 43.5 x 1.75 in (70 x 110.4 x 4.4 cm) Folded: 26.75 x 21.75 x 3.75 in (70 x 55.2 x 8.9 cm) |
Solar Panel Type: | Monocrystalline |
Rated Power: | 100 Watts |
Open Circuit Voltage: | 18-22V |
Ports: | Solar Port (blue, 8mm): 14-22V, up to 7A (100W max) |
Product Weight: | 25.9 lbs (11.7 kg) |
Chainable: | Yes: Up to 400W. |
Charges the Following: | Sherpa 50: 3 Hours Sherpa 100: 3-4 Hours Goal Zero Yeti 150: 3-6 Hours Goal Zero Yeti 400: 8-16 Hours Goal Zero Yeti 1250: 25-53 Hours Goal Zero Yeti 1400: 29-57 Hours |
Manufacturer Warranty: | 12 months | 10A Charge Controller |
Manufacturer Name: | Goal Zero |
Compatible With: | 100 Watt and below Solar Panels |
Input/Output terminal: | M5 terminals |
Input Port: Solar Port: (blue, 8mm): | 14-22.5V up to 10A |
Fuse: | 15A replaceable |
Charge Controller: | PWM |
Weight: | 14.4oz (408g) |
Dimensions: | 6.10" x 3.90" x 1.02" in (15.5 x 9.91 x 2.6cm) |
IP Grade: | IP65 |
Spade to 8mm Cable Length: | 3ft |
Operating temperature: | -25C to 50 C/ -13 F to 122 F |
Warranty: | 12 Months |
Certs: | IC, FCC, CE-EMC, CE-LVD | Battery Pairing Details |
Rated solar panel amps GZ-10: | 10A |
Normal input solar cell array voltage: | 15-22V |
Max solar cell array voltage (output has no load): | 25V |
Lowest operating voltage at solar or battery side: | 8V Minimum |
Start Voltage at 25C: | 3-10V |
LTO Battery: | 14.0V |
Gel battery: | 14.1V |
LiFePO4 battery: | 14.4V |
Charge Voltage at 25C: | AGM battery - 14.4V |
WET battery: | 14.7V |
Calcium battery: | 14.9V |
Equalizing Voltage at 25°C: | WET or Calcium battery-15.5V |
Gel, AGM, WET, Calcium batteries: | 13.6V |
LTO and LiFePO4 batteries: | 13.4V |
Battery temperature compensation coefficient: | -24mV/C |
Boulder 100 Briefcase Product Manual
10 Amp Charge Controller Manual

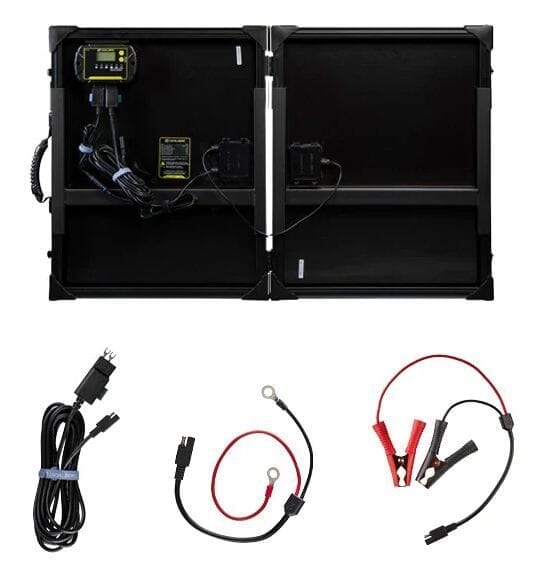

What's Included
What's Included:
• (1) Boulder 100 Watt Briefcase Solar Panel with 8mm cord and Kickstand
• (1) Canvas Carrying Bag
• (1) 10 Amp Charge Controller
• (1) Boulder Charge Controller Mounting Bracket
• (1) Spade to 8mm Cable
• (1) Spade to SAE Cable
• (1) SAE to Ring Terminal
• (1) SAE to Alligator Clip
• (1) Boulder 100 Watt Briefcase Solar Panel with 8mm cord and Kickstand
• (1) Canvas Carrying Bag
• (1) 10 Amp Charge Controller
• (1) Boulder Charge Controller Mounting Bracket
• (1) Spade to 8mm Cable
• (1) Spade to SAE Cable
• (1) SAE to Ring Terminal
• (1) SAE to Alligator Clip
