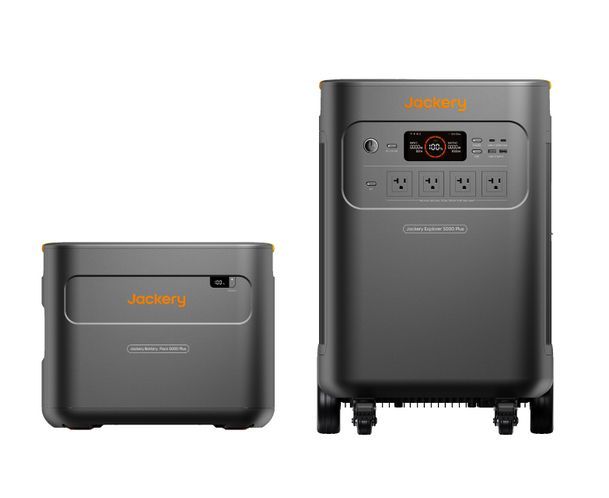

Jackery Explorer 5000 Plus Expansion Powerstation Kit - 10kWh Storage

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

In Stock

Jackery Explorer 5000 Plus Expansion Powerstation Kit - 10kWh Storage

Name: Jackery Explorer 5000 Plus Expansion Powerstation Kit - 10kWh Storage
SKU: 5000Plus-BATKIT
Price: 5579.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: 5000Plus-BATKIT

Ship Weight: 217 lbs.

Regular Price: $7,299.00

Sale Price: $5,579.00

You Save 24% ($1,720.00)

Product Details

The Largest, Most Anticipated Powerstation from Jackery has finally arrived! The Jackery Explorer 5000 Plus Expansion Powerstation Kit - features a 10kWh Storage and can expand up to 60kWh Storage Capacity & 7.2-14.4kW Output Capabilities for reliable home backup power lasting up to 2 weeks. Featuring 120V/240V dual voltage compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc.

Powerful, Lightweight Power Station:

•	Great for use with Smartphones, Lights, Camera Equipment, Tablets, 12V Appliances, Laptops, Drones, Electric Coolers, Display Monitors, Speakers, Mini Fridges, Energy Star Fridges and much more!
•	Expandable for Versatile Scenarios! Features 10-60kWh Capacity & 7.2-14.4kW Output for reliable home backup power lasting up to 2 weeks.
•	120V/240V dual voltage enhances compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc
•	Features an Outstanding LiFePO4 Battery with 10-Year Lifespan.
•	Includes an extended 5 Year Total Manufacturer's Warranty

Flexible Capacity for Versatile Scenarios:

•	The 5000 Plus can be expanded up to 60kWh Capacity & 7.2-14.4kW Output for reliable home backup power.
•	Click Here to purchase more Jackery Expansion Battery Packs for the 5000 Plus and expand by 5040Wh!
•	Can output 120V/240V dual voltage for one of the most compatible units on the market!

High-Quality Build Components:

•	Next-gen LiFePO4 battery lasts over 10 years, including a 5-year warranty!
•	Features ChargeShield 2.0 for advanced protection and efficient charging.

Quiet and Powerful:

•	Whisper Quite output for safe, relaxing power when you need it most.
•	Features optimized CTB structure, equipped with wheels and a pull handle, maintaining a low noise level of just 30 dB.

Super Fast Recharge Capabilities:

•	Solar Integration: Connects with Jackery 500X solar panels, 25% higher efficiency!
•	Fully charges in 1.7 hours, compatible with AC, high-voltage PV (4000W), low-voltage PV (1200W), and more.

Specifications

General Information
Manufacturer Name:	Jackery
Dimensions:	25" x 15.5" x 16.5" in
Weight:	134.5 lbs
Operating usage temp:	Charge Temperature: 32-113 F Discharge Temperature: 5-113 F
Warranty:	5 Year Warranty
Battery
Cell Chemistry:	LFP
Capacity:	5040 Wh (45Ah / 112V DC)
Cycle Life:	4000 cycles to 70%+ capacity
Management System:	BMS, Over Voltage Protection, Short Circuit Protection
Ports
AC Output:	AC Total Output: 7200W Max, 14,400W Surge AC Output (x4): 120V - 20A Max AC Output: (NEMA L14-30R/14-50) 120V/240V - 60Hz, 30A, 7200W Max
USB-A Output:	2x - 18W Max, 5-6V - 3A, 6-9V - 2A, 9-12V - 1.5A
USB-C Output:	2x - 100W Max, 5V - 3A, 9V - 3A, 12V - 3A, 15V - 3A, 20V - 5A
Cigarette Lighter Port:	12V-10A
AC Expansion Port (Output)(x1):	240V - 60Hz, 30A, 7200W
DC Expansion Port (Output)(x1):	80.5V-126V - 41A Max
Charge Mode AC input:	120V - 60Hz, 15A Max
Bypass mode AC input/output:	120V, 12A Max 240V, 16.7A Max
AC Expansion Port (Input)(x1):	240V - 60Hz, 16.7A Max
DC Expansion Port (Input)(x1):	80.5V-126V - 98A Max
High-PV:	135V-450V - 15A Max
Low-PV:	2 x DC 8mm Ports; 16V-60V - 10.5A Max, Double to 21A/1200W Max 11V-16V (Working Voltage) - 8A Max, Double to 8A Max
General Information
Manufacturer Name:	Jackery
Dimensions:	16.5" x 13.5" x 13.2" in / 41.8 x 34.4 x 33.6 cm
Weight:	81.57 lbs / 37 kg
Operating usage temp:	Charge Temperature: 32-113 F Discharge Temperature: 5-113 F
Warranty:	5 Year Warranty
Battery
Cell Chemistry:	LiFePO4
Capacity:	5040 Wh (45Ah / 112V DC)
Cycle Life:	4000 cycles to 70%+ capacity
Management System:	BMS, Over Voltage Protection, Short Circuit Protection
DC Expansion Port (Input):	80.5V - 126V - 41A Max
DC Expansion Port (Output):	80.5V - 126V - 98A Max
Ingress Protection:	IP20

5000 Plus Product Manual

What's Included

What's Included:

• (1) Jackery 5000 Plus
• (1) AC Charge Cable
• (1) MC4 Wrench
• (1) Jackery 5000 Plus Battery Pack
• (1) Extension Cable
• (1) Manual
