Anker SOLIX Power Dock - For Anker SOLIX E10 Home Backup System

Item Code: AX170J40

Ship Weight: 60 lbs.

Regular Price: $2,599.00

Sale Price: $1,999.00

You Save 23% ($600.00)

Product Details

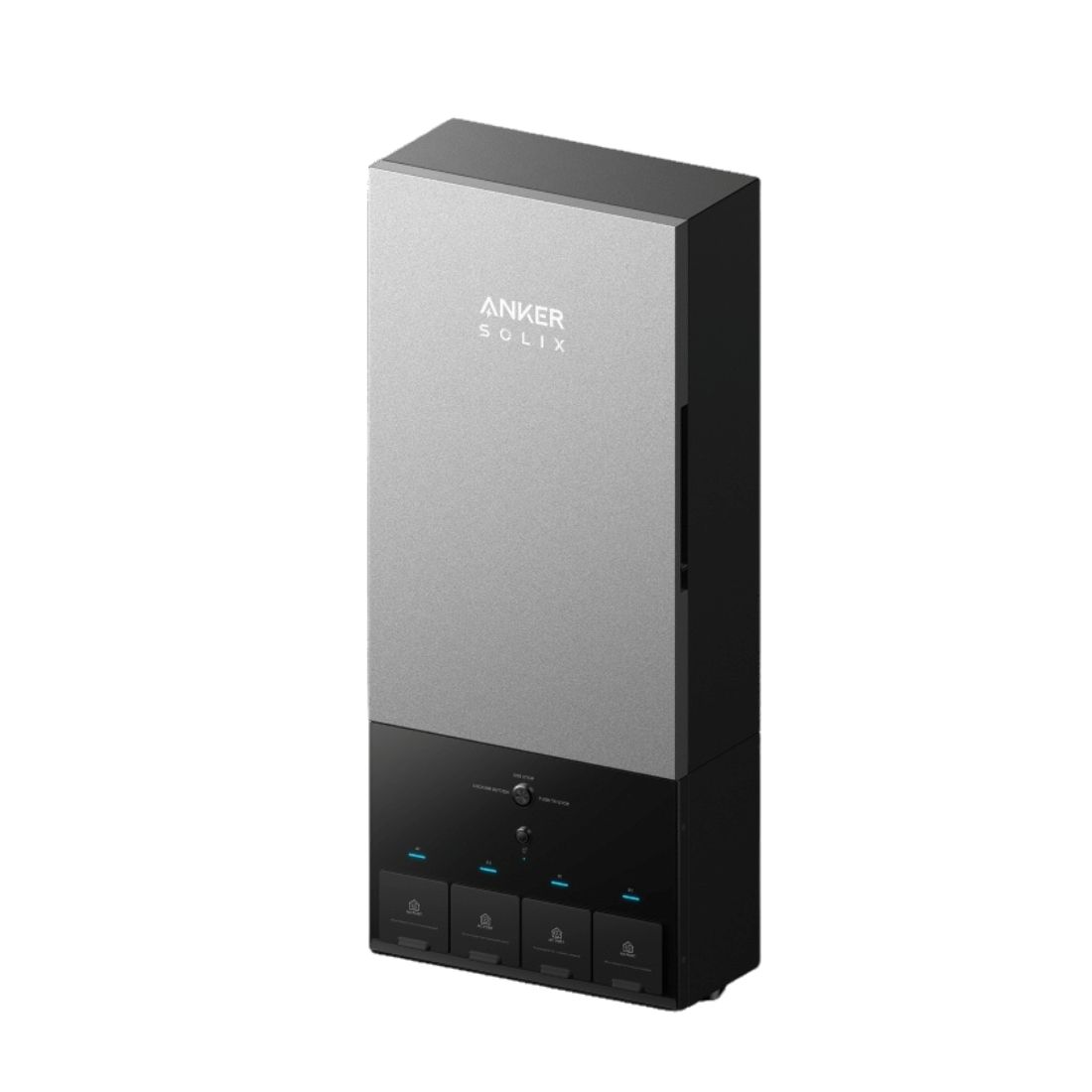

The Anker SOLIX Power Dock is a central control and connection hub designed to expand and manage Anker's modular home energy systems, particularly the SOLIX Solarbank battery storage units. It allows multiple battery modules, up to 4 solar banks, to operate in parallel, significantly increasing total energy storage capacity to as much as 64kWh while delivering continuous AC power for larger household loads of up to about 4.8kW. The system also supports high solar input of up to 14.4kW for efficient charging and improved self-consumption. This scalable architecture makes it a strong foundation for renewable energy integration, enabling greater energy independence and the ability to support demanding appliances such as heat pumps and electric vehicle charging. Installation is handled by certified electricians to ensure safety and proper system performance.

The Most Accessible Home Power System:

•	Please Note: Installation MUST be performed by a licensed electrician
•	Expandable Power & Storage: The Power Dock enables connection of multiple compatible SOLIX battery units, allowing total system capacity to scale up to approximately 64kWh, depending on configuration.
•	High Power Output Support: Designed to aggregate power from connected units, delivering up to 4.8kW AC output, ideal for enhanced home energy usage and backup scenarios.
•	Solar-Ready Integration: Supports high photovoltaic input, allowing efficient charging from large solar arrays and maximizing solar-to-storage performance.
•	Smart Monitoring & Control: Built-in Wi-Fi and Bluetooth connectivity enables real-time monitoring, energy management, and system optimization through the Anker SOLIX app.

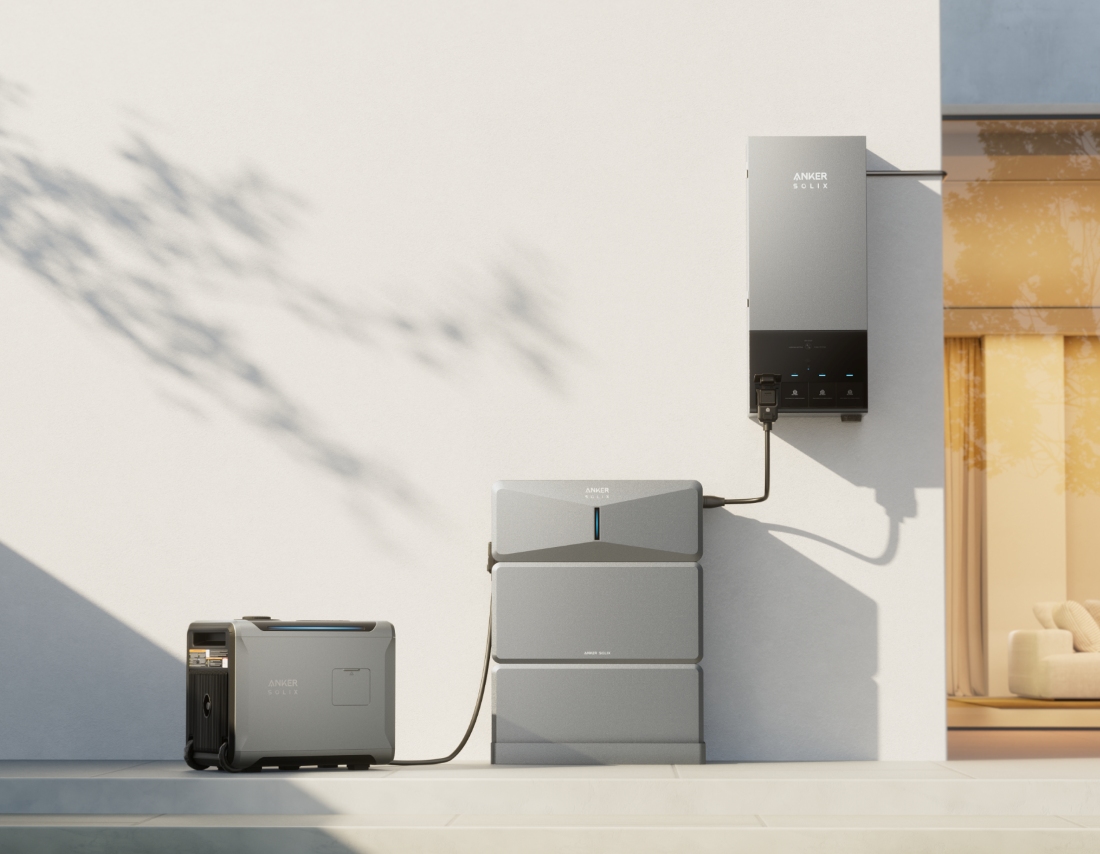

•	Built for Permanent Home Installation: Wall-mounted, durable, and engineered for seamless coordination between grid power, solar input, and battery storage.
•	Designed to Be Paired With: Compatible Anker SOLIX batteries, solar systems, and home energy accessories to create a flexible, future-proof home power solution.

200A Whole-Home Backup:

•	Every circuit covered. Unlike systems limited to 100A that force you to choose which rooms stay powered during outages, the 200A Power Dock protects your entire home panel, so every outlet works as if the grid never went down.

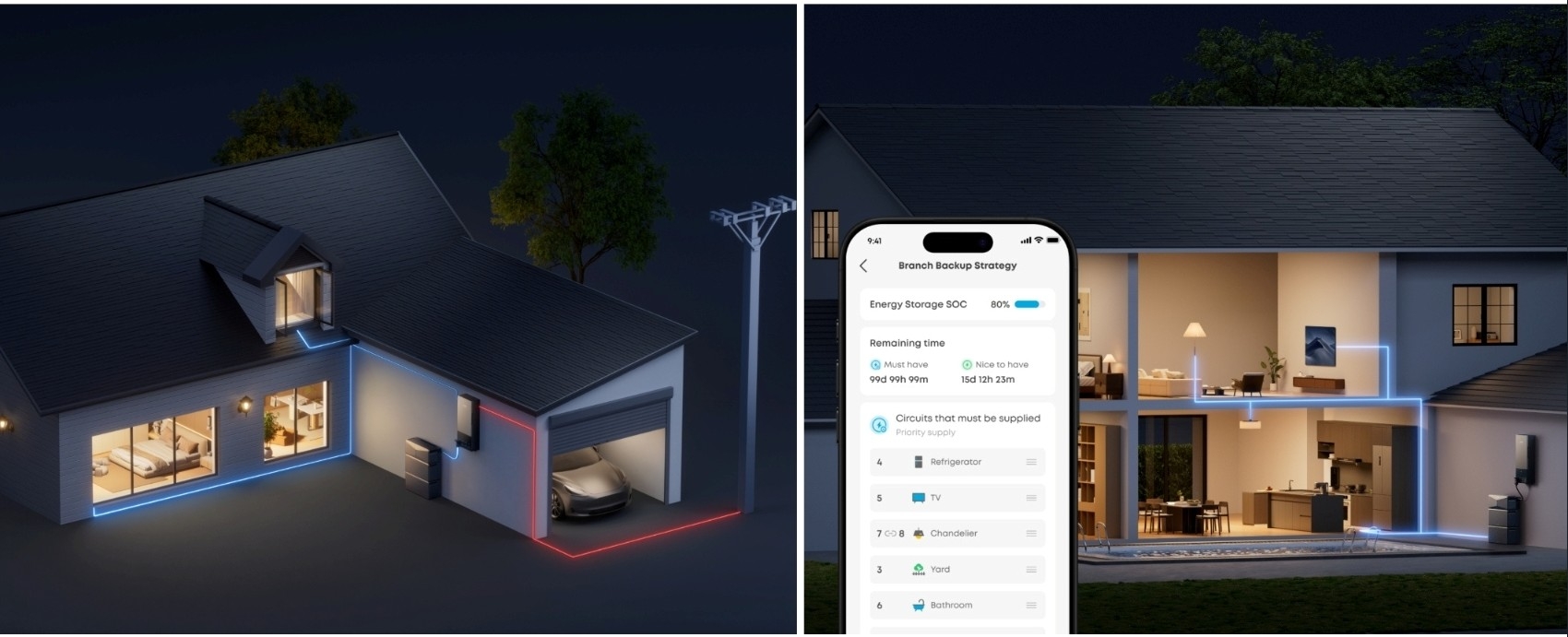

Smart Whole-Home Energy Control:

•	While traditional generators take 10 to 30 seconds to start, Power Dock activates your backup power in under 20ms, fast enough to keep your devices and data safe. Now you can stay powered without missing a beat.

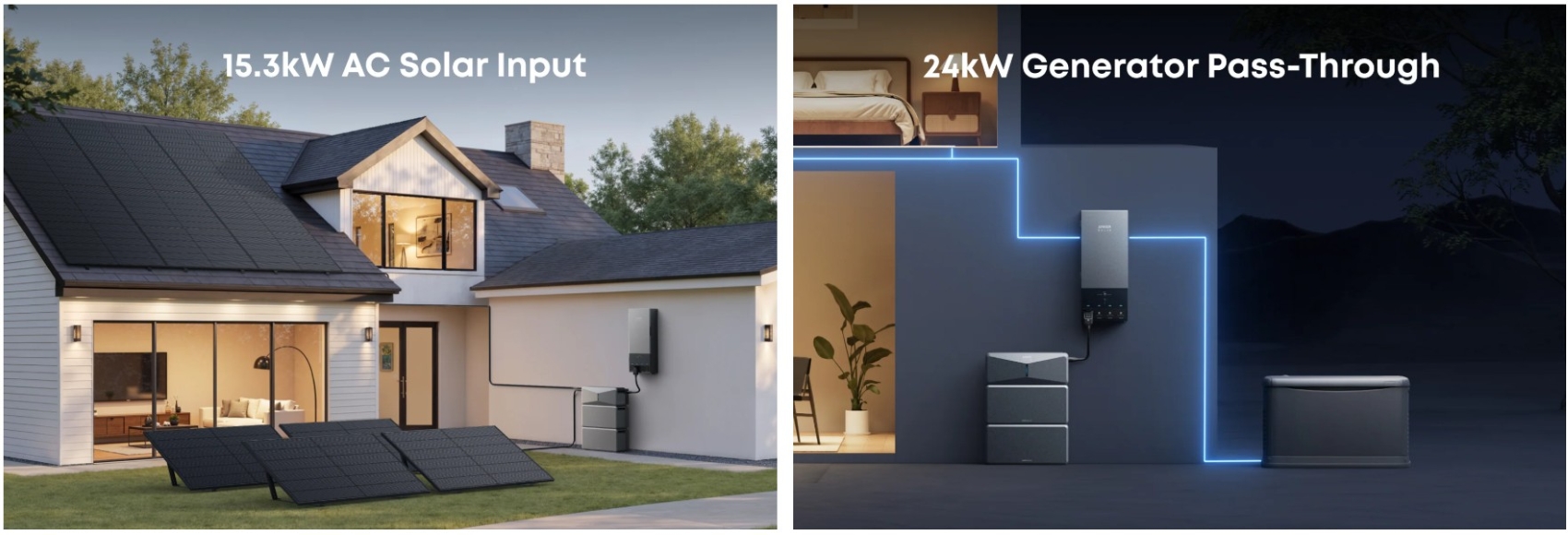

Multi-Source Power Connectivity:

•	Seamlessly integrates third party AC solar power systems with up to 15.3kW capacity. Works with any 240V generator, including standby models, delivering up to 24kW of direct pass-through power.

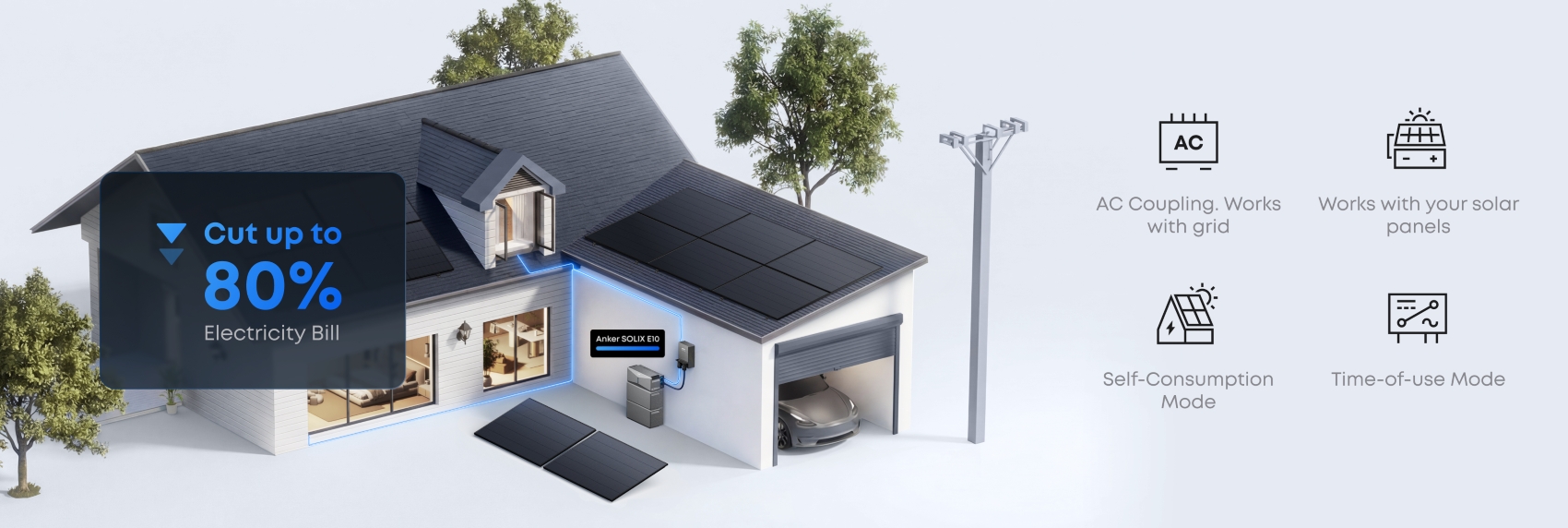

Reduce Up to 80% of Electricity Bills:

•	Optimized energy savings. Works seamlessly with existing solar power systems and grid connections through AC coupling, storing excess solar power and off-peak electricity to avoid expensive peak rates and maximize your savings.

Adaptable Setup for Easy Installation:

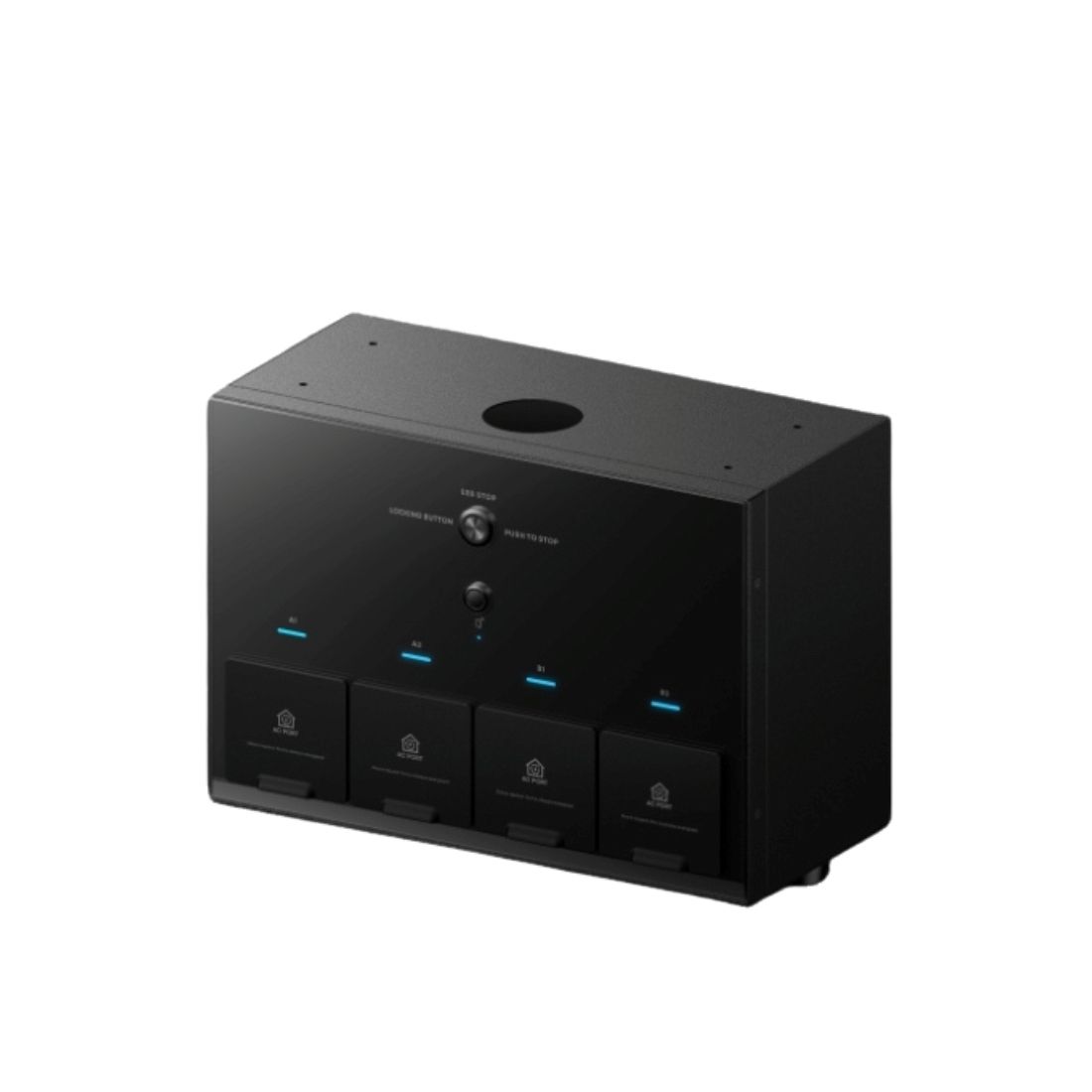

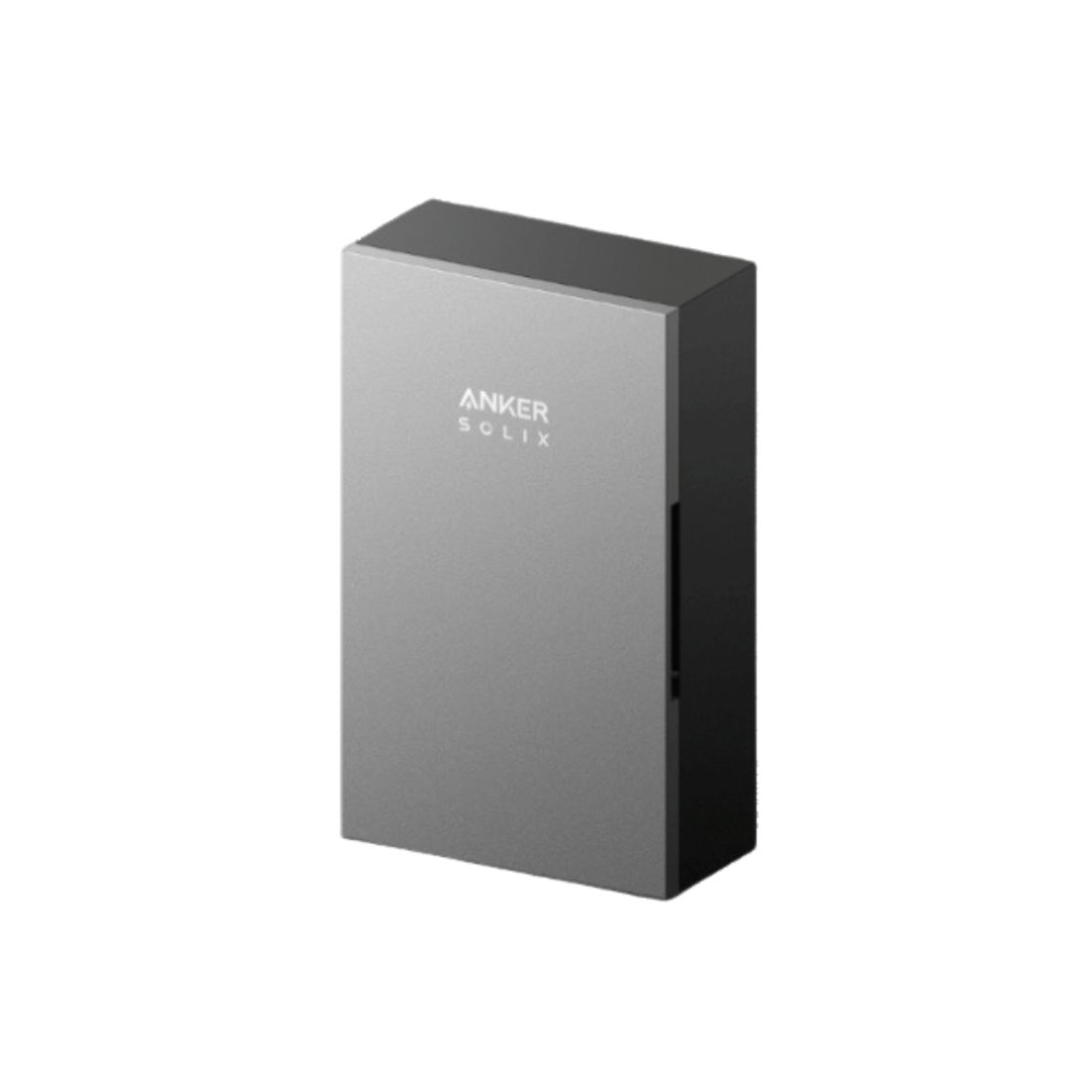

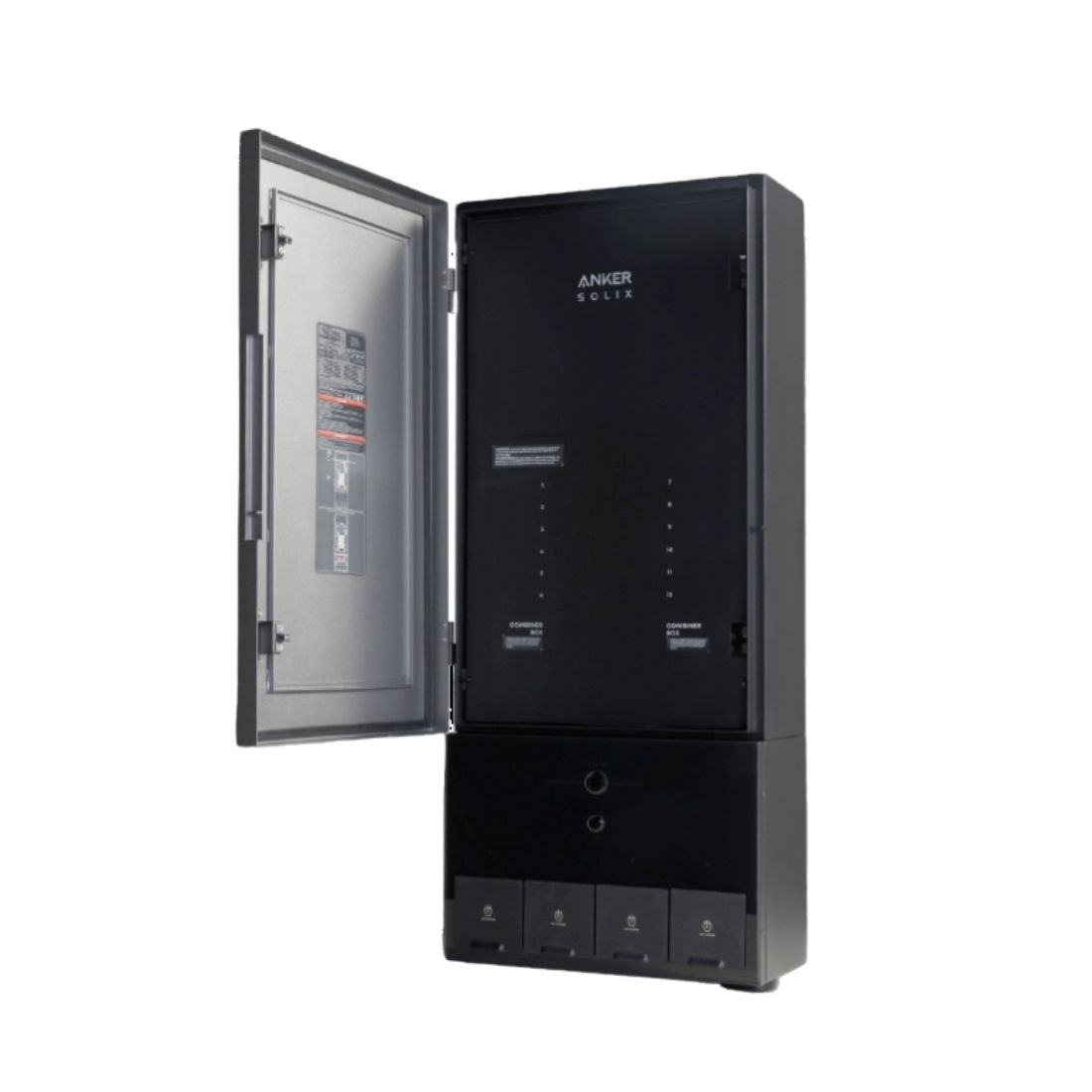

•	Modular Split Design: Install the automatic transfer switch box and combiner box together or separately to suit your setup. Position the switch box near your main panel for cleaner wiring and an easier installation experience.
•	Weather-Proof: Designed for indoor or outdoor use, it is protected against rain, snow, and dust, and operates smoothly in temperatures from -4 F to 131 F.
•	Plug-and-Play: This makes it quick and easy to integrate with your existing SOLIX batteries and solar system for seamless home energy management.

Specifications

General Information
Manufacturer Name:	Anker
Dimensions :	36.1" x 15" x 7.1" in
Weight:	60 lbs
Operating Temperature:	-4 F to 131 F (-20-55 C)
Rated Voltage:	120 / 240 VAC (Split Phase)
Rated Frequency:	60Hz
Switchover Time:	less than or equal to 20 ms
Grid Connection:	200 A Maximum, 160 A Continuous
Subpanel Connection:	200 A Maximum, 160 A Continuous
Circuits 1 and 2 (Load Or Generator):	100 A Maximum, 80 A Continuous
Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load):	60 A Maximum, 48 A Continuous
Circuits 7 and 8 (Load Or AC Solar):	80 A Maximum, 64 A Continuous
Circuits for Batteries:	125 A Maximum, 100 A Continuous
Circuits 1 and 2 (Load Or Generator):	100 A Maximum, 80 A Continuous
Enclosure Type:	NEMA TYPE 3R
Wi-Fi, Bluetooth:	Supported
Manufacturer Warranty:	10 Years

What's Included

What's Included:

• (1) Anker SOLIX Power Dock
• (1) On-Grid Cable
