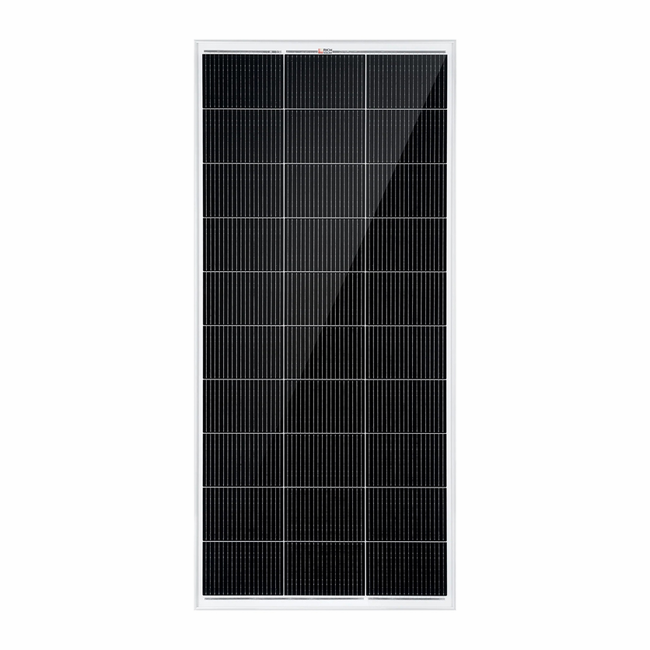

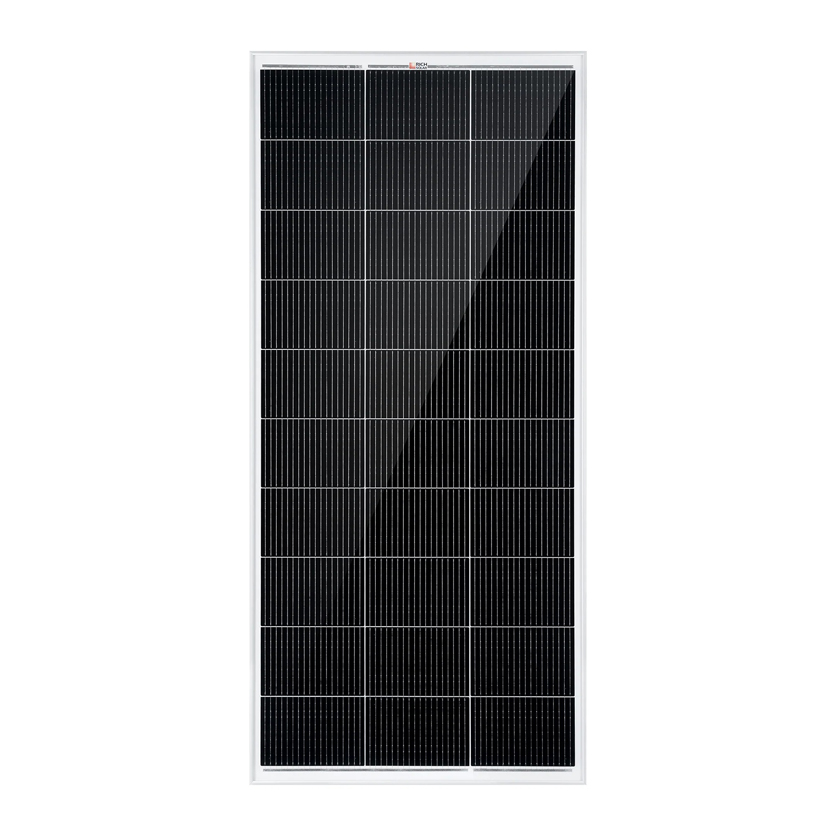

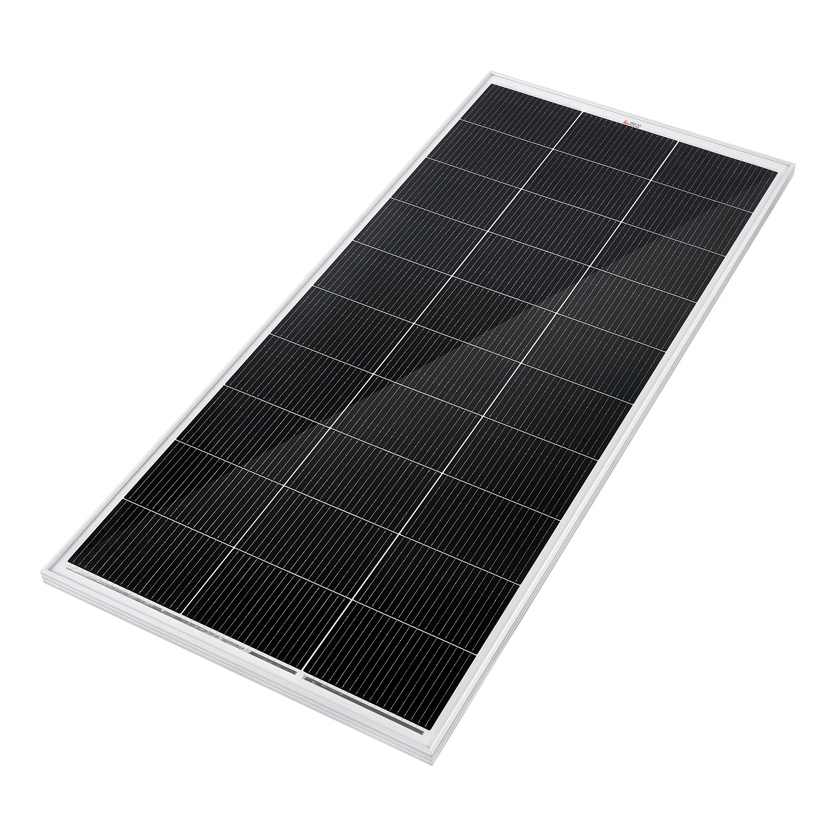

Rich Solar 200 Watt Mega 12 Volt Solar Panel

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

In Stock

Rich Solar 200 Watt Mega 12 Volt Solar Panel

Name: Rich Solar 200 Watt Mega 12 Volt Solar Panel
SKU: RS-M200
Price: 192.00 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Item Code: RS-M200

Ship Weight: 29 lbs.

Regular Price: $339.99

Holiday Sale: $192.00

You Save 44% ($147.99)

Product Details

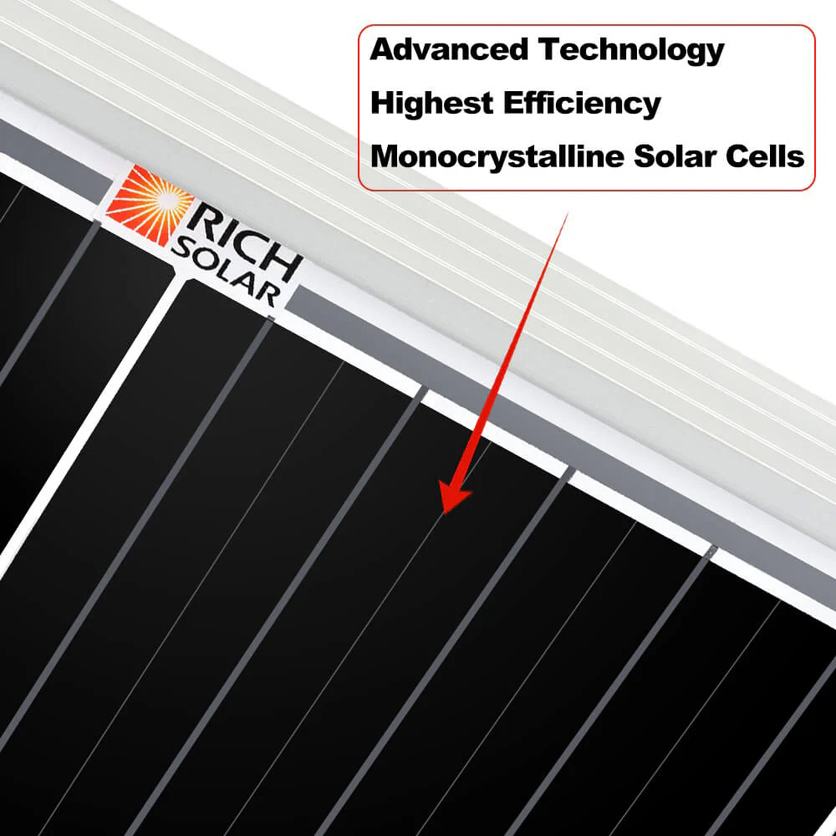

Add reliable, cost-effective Monocrystalline Solar Panels to your favorite Solar Generators & Portable Power Stations. Produce up to 200W of power per hour with this Mega solar panel!

Unique Compatibility:

•	Compatible with the Ecoflow Delta Max, Delta Pro, Bluetti AC200P, Bluetti EP500, Zendure 1500/2000 and Mango Power Solar Generators.

High Performance:

•	Excellent low-light performance even on early mornings, evenings, and cloudy days.

Industry Standard:

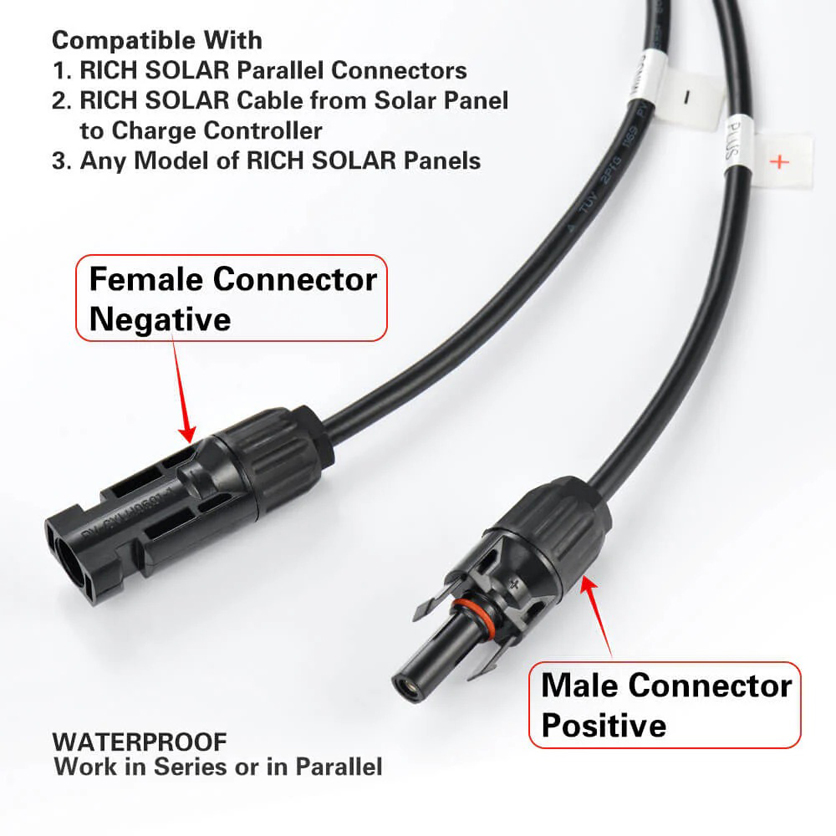

•	Generates 9.8 amps of power, charges 12 volt batteries, 3' quick connect cables with connectors, and works in series or in parallel.

Rugged Durability:

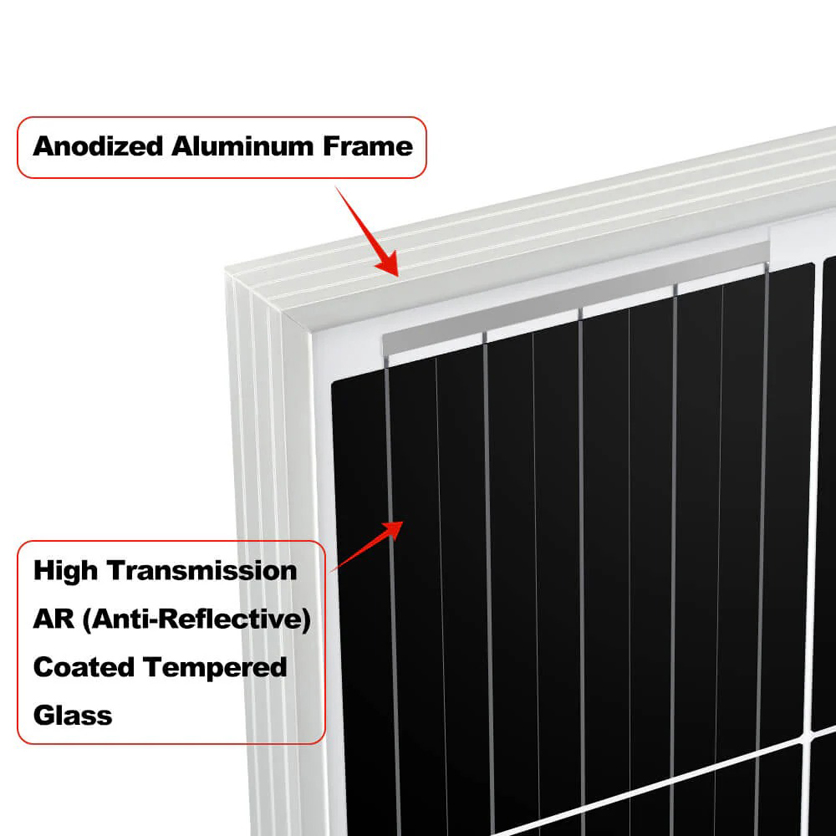

•	Built with strong high transmission �Anti-reflective� coated tempered glass, and an anodized aluminum frame.

Simple Installation:

•	Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.

25 Year Limited Warranty:

•	Features a 25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship.

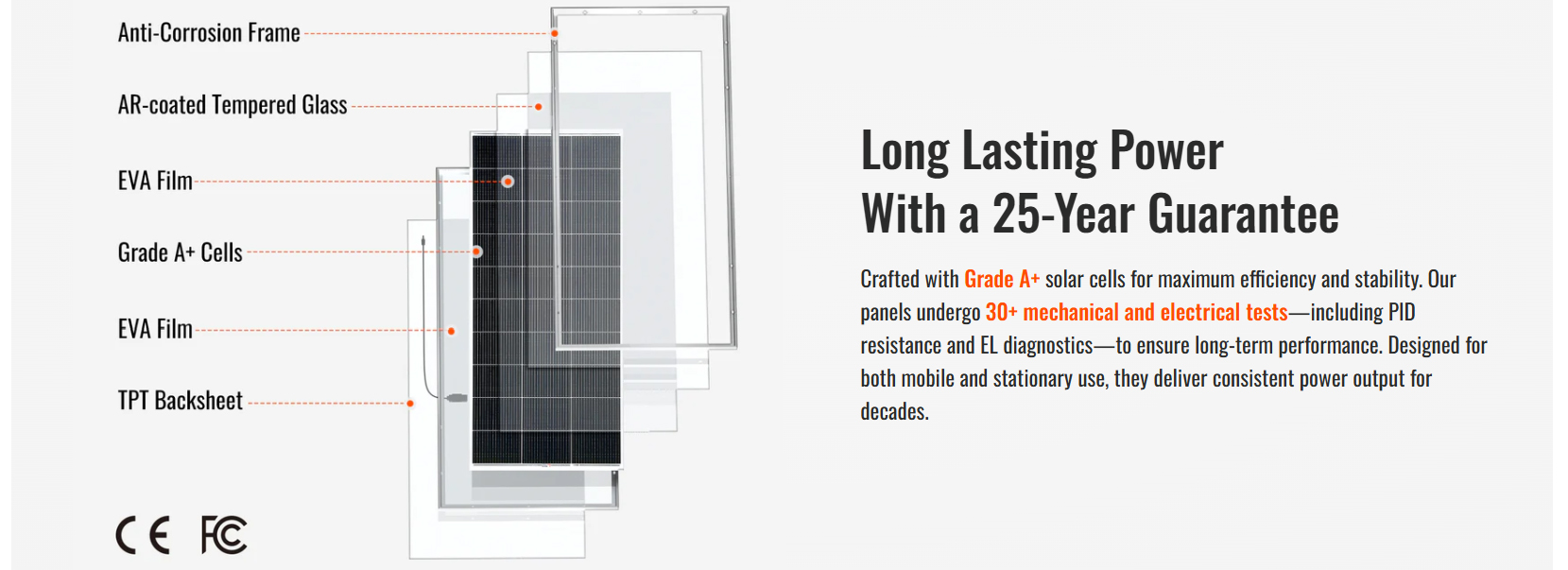

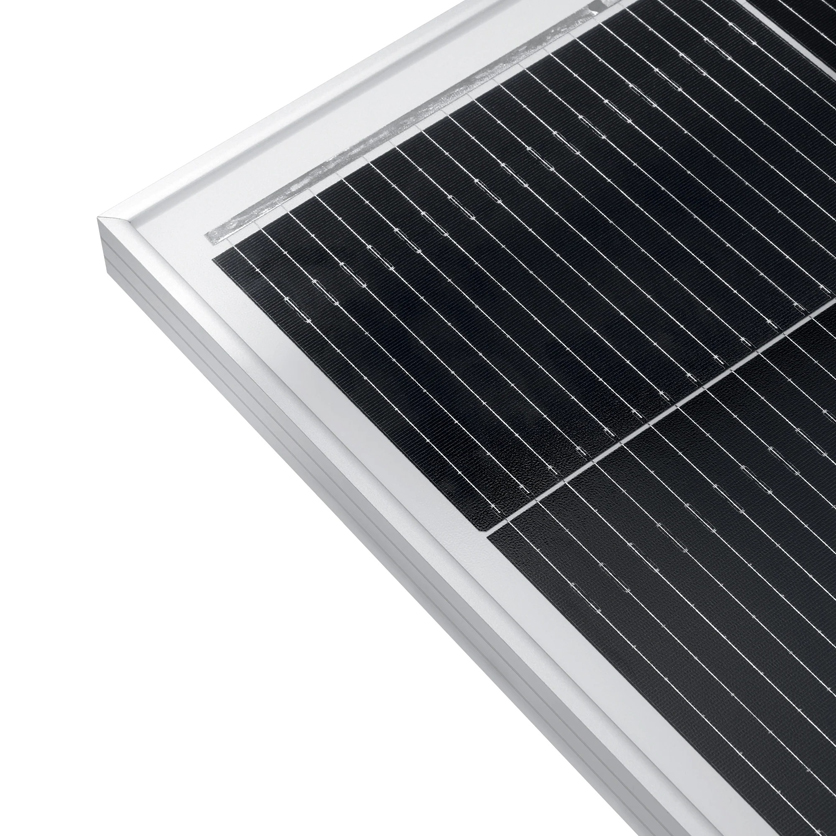

High Quality Material Design

•	Built with strong high transmission �Anti-reflective� coated tempered glass, and an anodized aluminum frame.

Ultra Compact

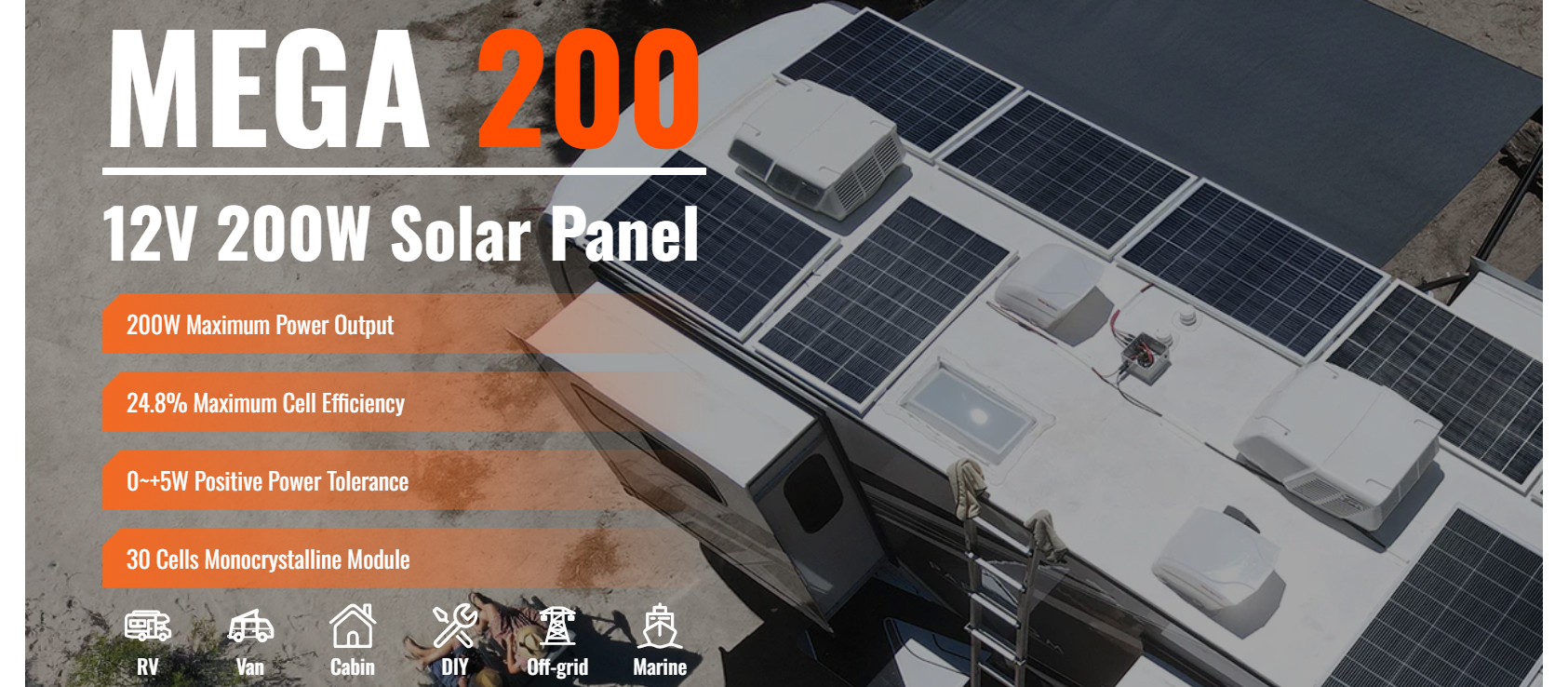

•	Fits Offgrid DIY solar projects, Offgrid Tiny Homes, Offgrid VanLife
•	Smallest Size Offgrid Solar Panel with Best Performing Efficiency!
•	Features a Lightweight anodized aluminum frame and High Transmission, AR (anti-reflective) Coated Tempered Glass.

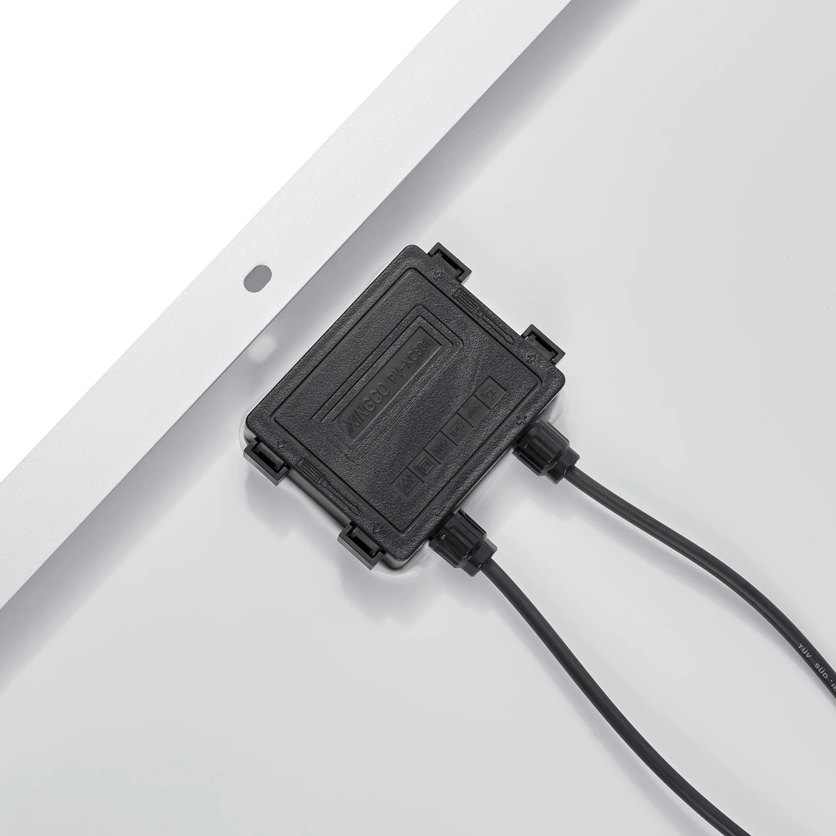

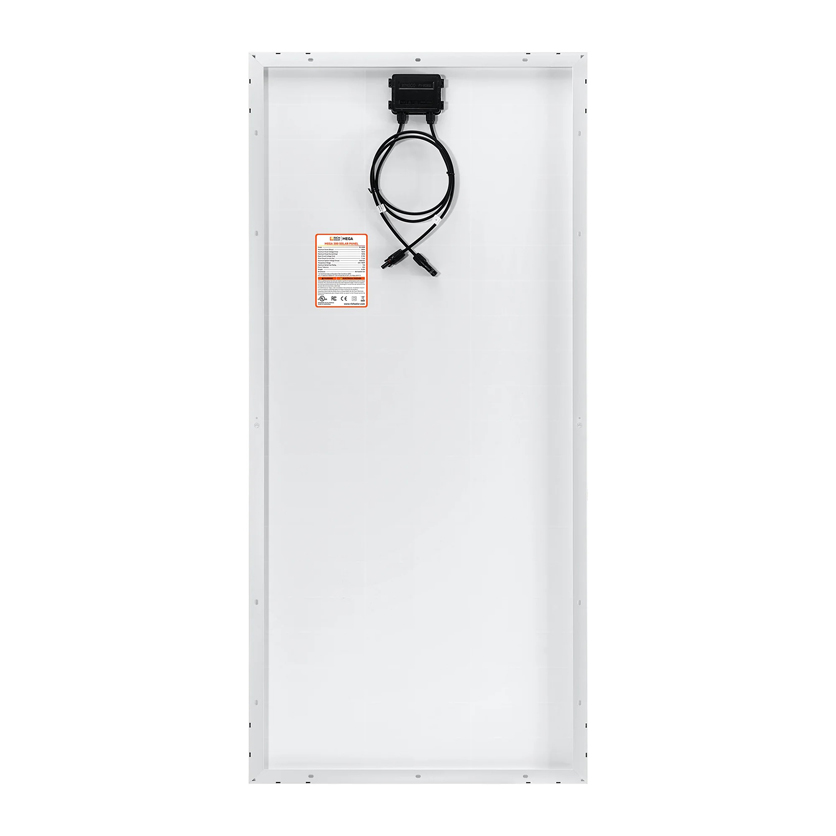

•	Includes an IP65 rated waterproof junction box and IP67 rated waterproof solar connectors.

Specifications

General Information
Manufacturer Name:	Rich Solar
Dimensions:	58.7" x 26.8" x 1.4" in
Weight:	26.5 lbs
Temperature Range:	-40C - 90C
Warranty:	25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship
Power
Maximum Power (Pmax):	200W
Maximum Power Voltage (Vmp):	20.4V
Maximum Power Current (Imp):	9.80A
Open Circuit Voltage (Voc):	24.3V
Short Circuit Current (Isc):	10.2A
Maximum System Voltage (Vmax):	1000VDC
Max Series Fuse Rating:	20A
Weight:	26.5 lbs

Product Manual

What's Included

What's Included:

• (1) Mega 200 Watt 12 Volt Solar Panel
• (1) User Manual

Related Items

I ordered this panel because the 200 watts at 20.4 volts of the Rich Solar panel matched the factory installed solar panel's 195 watts at 20.4 volts on our 2021 Jayco White Hawk RV. The only real difference was the Rich Solar's 9 buss bars v. the 5 buss bars which improves efficiency. The panel & MC4 wyes and MC4 extension wires are simple plug & play. I am sticking with the current 600 watt pulse width controller for now, later I will add another 200 watt panel (for 600 watts) and then at 800 watts change controller to the MPPT with series panel connections. The order came in reasonable time and was very well packed, with 1/2 foam on the panel front and sides boxed in cardboard and then boxed again in a second heavy duty outer cardboard. Outer cardboard was slightly damaged but no damage got through the inner cardboard. I have not yet hooked this panel up but everything looks quality, I can recommend this company to others.

Cons

Can't give any cons, I have not had time (we're moving) to install it.
