Rich Solar 300Ah 12V LiFePO4 Off-Grid Battery Kit - 3.8kWh Deep Cycle Lithium Battery Bank for RVs, Trailers, Cabins, Campers, Vans and Off-Grid

Name: Rich Solar 300Ah 12V LiFePO4 Off-Grid Battery Kit - 3.8kWh Deep Cycle Lithium Battery Bank for RVs, Trailers, Cabins, Campers, Vans and Off-Grid
SKU: RS-B12100x3
Price: 1129.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: RS-B12100x3

Ship Weight: 73 lbs.

Regular Price: $1,799.99

Cyber Sale: $1,129.00

You Save 37% ($670.99)

Product Details

The Rich Solar 12V 300Ah LiFePO4 Lithium Iron Phosphate Battery Bank has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and is packed with power in a small and lightweight footprint. Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.

Innovation Meets Affordability:

•	Harness the potential of eco-friendly energy with Rich Solar's renowned lithium iron phosphate batteries. Offering dense energy storage for a versatile array of uses.

Long-Term Use and Reliability:

•	Features a greater than 10 Year lifespan with proper maintenance techniques and practices!
•	Includes an extended 5 Year Manufacturer Warranty for no hassle support.

BMS Safety Protection:

•	Each cell is fused and in the unlikely event a cell fails, our design will isolate the cell, preventing any other damage, while allowing the battery to function safely!
•	Features top of the line built-in smart battery management technology to ensure safe and efficient discharge and recharge.
•	Experienced rigorous testing before hitting the market. Both physical damage and excessive thermal exposure will not cause a fire!

Portable and Lightweight:

•	Includes a convenient, removable carry handle + its lightweight design makes for a fast and efficient replacement or relocation process.
•	The lightweight singular battery design packs a massive 1.2kWh of storage at only 24.3 lbs. (Bank features 3.8kWh at 72.90 lbs)
•	Expand at your pace to build the ultimate off-grid power storage system!

Specifications

Electrical Specifications
Manufacturer Name:	Rich Solar
Nominal Voltage:	12.8V
Nominal Capacity (at .5C, 77F):	100Ah
Minimum Capacity (at .5C, 77F):	95Ah
Expected Cycle Life:	Greater than 4000 cycles w/1C charge and discharge rate, at 77F, 80% DOD
Operating Specifications
Charge Method:	Smart charger, constant current, constant voltage
Operating Voltage:	12.8 V
Capacity:	100 Ah
Energy:	1280 Watt Hours
Charge Voltage Range:	14.4V
Continuous Charge Current:	100A
Continuous Discharge Current:	100A
Over Voltage Shutdown:	15.6 +/-0.2V
Discharge Cut-off Voltage:	8V =/- 0.5V
Self Discharge (stored at 50% SOC):	great than 3%/month
Temperature Performance
Charge Temperature:	32 F to 131 F
Discharge Temperature:	-4 F to 140 F
Storage Temperature:	14 F to 140 F
BMS High Temperature Cut-off:	149F
BMS Low Temperature Cut-off:	32F
Physical Specifications
Battery Dimensions:	10.2" x 6.6" x 8.3" in
Weight:	24.3 lb
Group Size:	24
Battery Post Size:	5/16"
Over Charge Protection
Over Charge Detection Voltage:	3.9 +/- 0.05V
Over Charge Detection Delay Time:	0.96 - 1.4s
Over Charge Release Voltage:	3.80 +/-0.05V
Maximum Charge Voltage:	3.65 +/-0.05V
Over Discharge Protection
Over Discharge Detection Voltage:	2.0V +/- 0.05V
Over Discharge Detection Delay Time:	115-173ms
Over Discharge Release Voltage:	2.3V +/- 0.10V
Over Current Protection Over current detection delay time:	9 +/- 2ms
Over Current Release Condition:	Cut load
Polarity Reverse Protection:	Yes
Short Circuit Protection:	Yes

What's Included

What's Included:

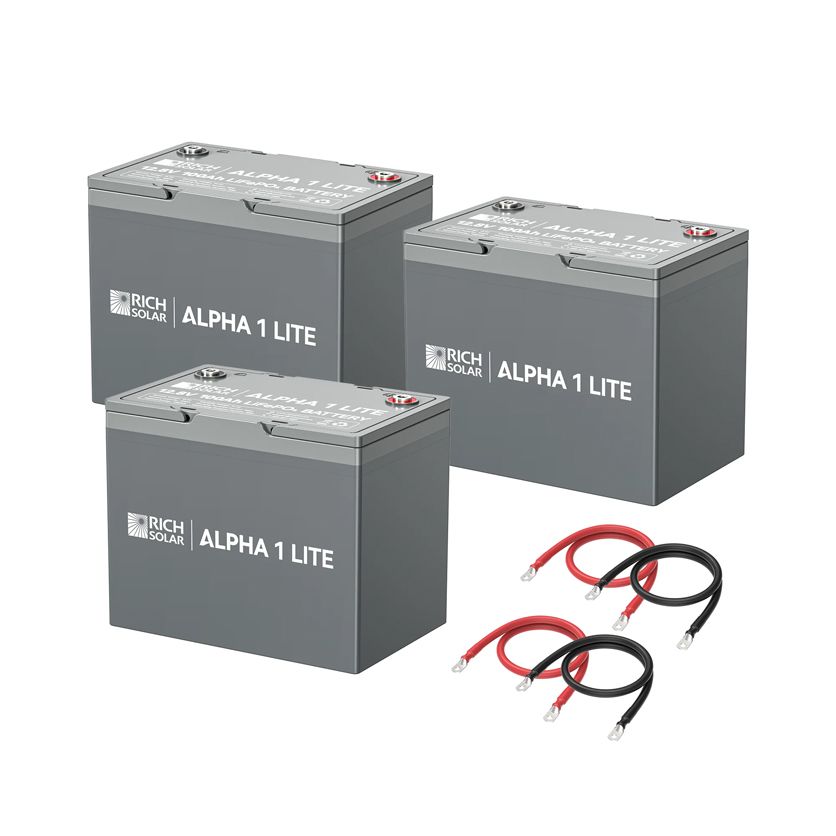

• (3) Rich Solar 12V 100AH LiFePO4 Battery
• (4) 1ft 2 AWG Battery Cable
