General Information |
Manufacturer Name: |
Goal Zero |
Chainable: |
No |
Dimensions: |
15.25" x 10.23" x 9.86" in (38.74 x 25.98 x 25.04 cm) |
Weight: |
31.68 lbs (14.37 kg) |
Operating usage temp: |
32-104 F (0-40 C) |
Warranty: |
2 Year Warranty |
Battery |
Cell Type: |
Li-ion NMC |
Pack Capacity: |
983Wh (10.8V, 91Ah) |
Management System: |
MPPT charge controller, low battery protection |
Lifecycles: |
500 Cycles to 80% capacity (Approx. 2000 cycles with depreciation)(Discharge rate: 1C, full charge/discharge, Temp 25C) |
Shelf-life: |
Keep plugged in, or charge every 3-6 months |
Ports |
USB-A port (output): |
5V, up to 2.4A (12W max), regulated |
USB-C port (output): |
5 - 12V, up to 3.0A (18W max), regulated |
USB-C PD port (input/output): |
5 - 20V, up to 3.0A (60W max), regulated |
6mm Port (output 6mm): |
12V, up to 10A (120W max), regulated |
12V car port (output): |
12V, up to 15A (180W max), regulated |
12V High Power Port (output): |
12V, up to 15A (180W max), regulated |
120V AC Inverter: |
120VAC 60Hz, 12.5A (1500W, 3000W surge) (output, pure sine wave) |
Charging port (input, 8mm): |
14-50V, up to 10A (150W max) |
Charging High Power Port (input): |
14-50V, up to 50A (600W max) |
Expansion Module port: |
Covered port under the lid. To be used with Goal Zero expansion modules only. |
Boulder 100 Briefcase Solar Panel |
Manufacturer: |
Goal Zero |
Product Dimensions: |
Unfolded: 26.75 x 43.5 x 1.75 in (70 x 110.4 x 4.4 cm) Folded: 26.75 x 21.75 x 3.75 in (70 x 55.2 x 8.9 cm) |
Solar Panel Type: |
Monocrystalline |
Rated Power: |
100 Watts |
Open Circuit Voltage: |
18-22V |
Ports: |
Solar Port (blue, 8mm): 14-22V, up to 7A (100W max) |
Product Weight: |
25.9 lbs (11.7 kg) |
Chainable: |
Yes: Up to 400W. |
Charges the Following: |
Sherpa 50: 3 Hours Sherpa 100: 3-4 Hours Goal Zero Yeti 150: 3-6 Hours Goal Zero Yeti 400: 8-16 Hours Goal Zero Yeti 1250: 25-53 Hours Goal Zero Yeti 1400: 29-57 Hours |
Manufacturer Warranty: |
12 months |
Charge Times |
AC Wall Charger: |
120W: 9 Hours 230W: 4.5 Hours 600W: 2 Hours |
What can the Yeti 1000X Power? |
Smart Phone (12 Wh): |
82 Charges |
Tablet (30 Wh): |
33 Charges |
Laptop (50 Wh): |
20 Charges |
POV Camera (5 Wh): |
197 Charges |
DSLR Camera (18 Wh): |
55 Charges |
Head Lamp (5 Wh): |
197 Charges |
Light-a-Life 350 (4.5 Wh): |
219 Hours |
Light Bulb (11 Wh): |
90 Hours |
CPAP (65 Wh): |
15 Hours |
TV (42" LED) (100 Wh): |
10 Hours |
Pellet Grill (60 Wh): |
17 Hours |
Microwave (1000 Wh): |
1 Hours |
Portable Fridge (25 Wh): |
40 Hours |
Mini Fridge(35 Wh): |
35 Hours |
Full Size Refrigerator (55 Wh): |
18 Hours |
Circular Saw (13 Amp) (1500 Wh): |
0.5 Hour |

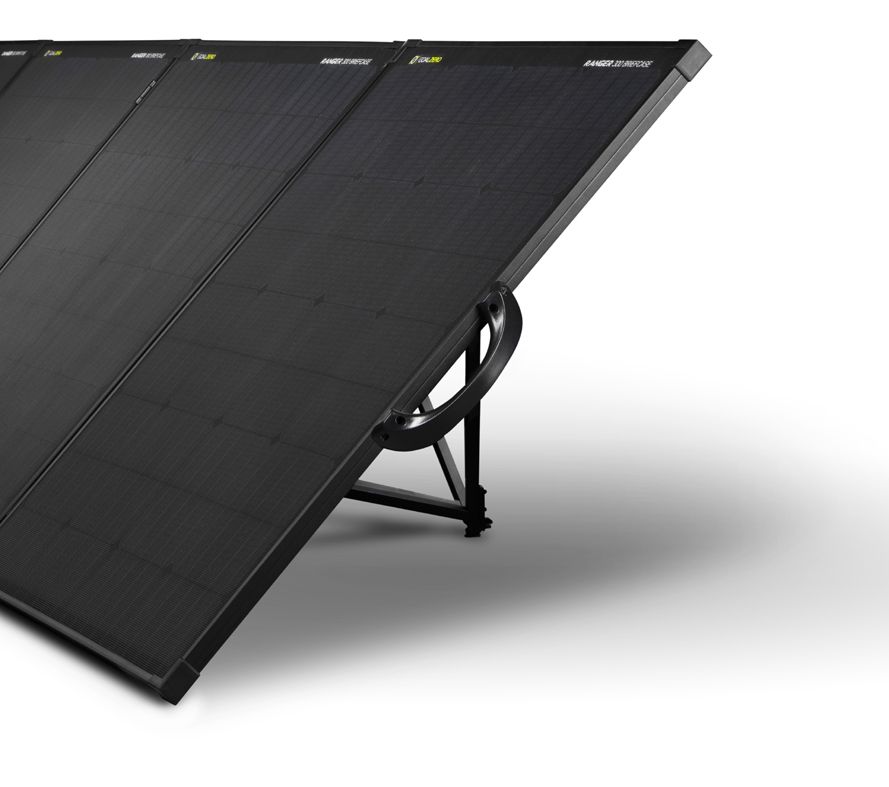

Ranger 300 Solar Panel |
Manufacturer: |
Goal Zero |
Product Dimensions: |
Unfolded (without leg stand): 30.6" x 105.9" x 0.9" in (77.7 x 269.0 x 2.3 cm) Folded: 30.6" x 26.3" x 3.8" in (77.7 x 66.8 x 9.7 cm) |
Rated Power: |
300 Watts |
Maximum Power Point Voltage (Vmpp): |
19.3V |
Open Circuit Voltage: |
23V |
Ports: |
High Power Port (6ft of 12AWG cable): 14-23V, up to 21A (300W max) |
Cable Length: |
6 ft |
Cable Gauge: |
12 AWG |
Product Weight: |
39 lbs (17.7 kg) |
Charge Times: |
Yeti 500X: Charges in 3-4 Hours Yeti 1000X: Charges in 4-8 Hours Yeti 1500X: Charges in 6-12 Hours Yeti 3000X: Charges in 12-24 Hours Yeti 6000X: Charges in 24-48 hours |
Manufacturer Warranty: |
24 months |
