In Stock
EcoFlow 5kWh Independence Power Kit
Item Code: ZMM100BP5-3
Ship Weight: 240 lbs.
Regular Price: $9,452.00
Sale Price: $7,239.00
You Save 23% ($2,213.00)
Product Details

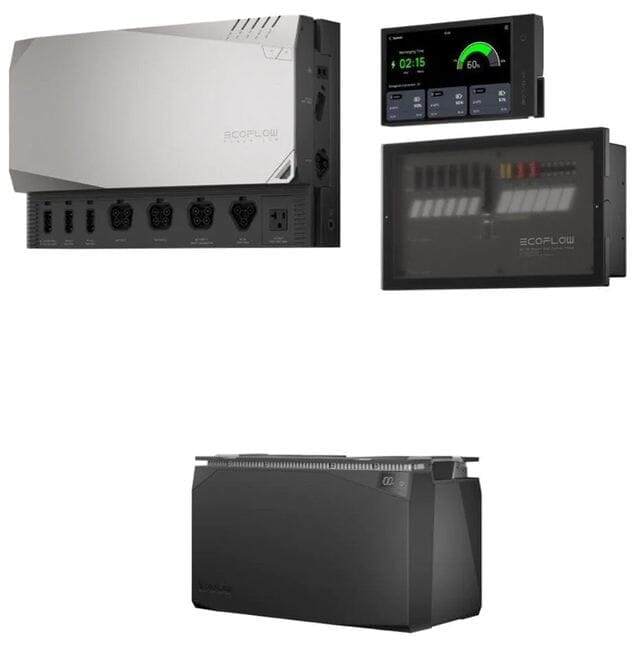

The EcoFlow 5kWh Independence Power Kit allows you to quickly build a sizeable electrical system for your van/off-grid home using a LFP battery, Power Hub, Monitor and the AC/DC Distribution Panel. Easily expand to fit your growing needs with the Ecoflow Power Kits.
Customizable Kits for Vans/RVs/Trailers or Cabins:
Multiple Ways to Stay Powered:
Setup Made Simple:
Compact & Integrated Design:
Auto-Heating Batteries:
48V, a Safer, Smaller Power Solution:
Smart Controls:
AC/DC Smart Distribution Panel:
Battery Expansion:
Power Kit Console:
Major Solar Input Capabilities:
• | Expand: The 5kWh Power Kits fulfill the essential energy needs of your RV or off-grid build. Expand this kit to 15kWh by adding up to 2 more batteries. |
• | Easy Set Up: The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market. |
• | Save Space: The EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle. |
• | Charge Your Way: The EcoFlow Power Kits support multiple charging methods. Get plenty of solar power, use your alternator, plug in shore power, or even use the EcoFlow Smart Gas Generator for emergency charging (sold separately). |
• | Monitor: The included Power Kit Console allows the user to monitor, adjust and update directly from the 7-Inch (Diagonal) IPS Touch Screen display. |

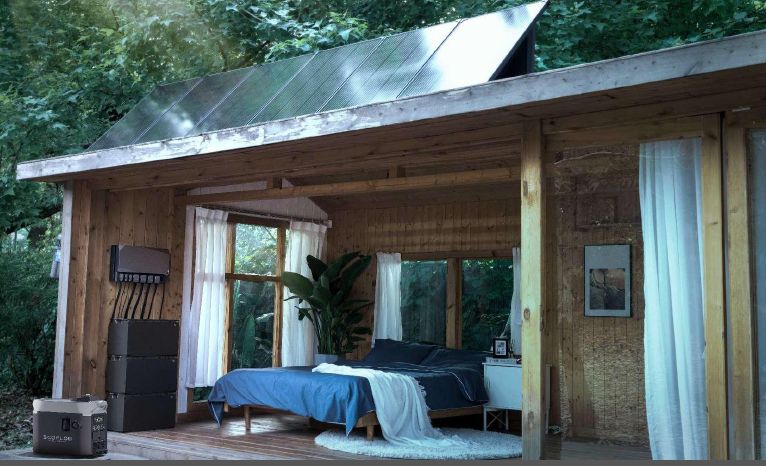

• | From tiny home to an off-grid cabin, you can adjust your kit to fit any size build. |

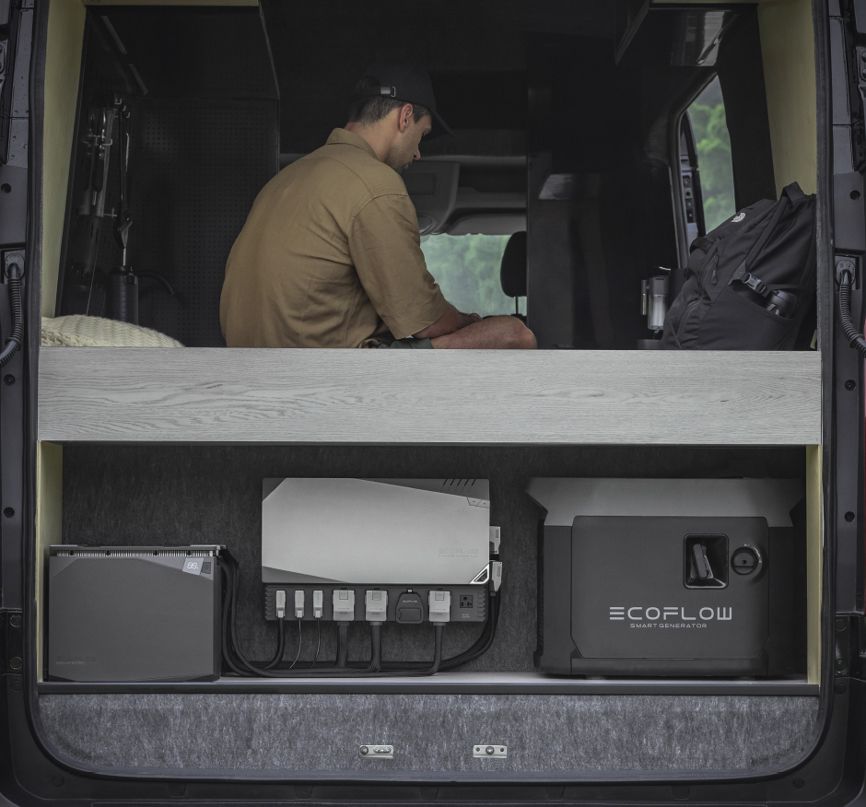

• | Whether you’re replacing your van’s electrics or building a system from scratch, the plug-and-play system allows you to easily modify your hardware to fit your mobile power needs. |

• | You might live off-grid, but you still rely on power. Get multiple methods of charging using a combination of rigid, flexible, and portable solar panels and our Smart Generator if you’re in a jam. |
• | We made our modular system plug-and-play so you can quickly customize your van power whenever you want. Simply stack a battery to increase capacity, or plug in a solar panel for faster charging. |
• | We’ve got experts on-hand to guide you through the installation process. |

• | Unlike other off-grid power solutions, our Power Kits combine five components into one Power Hub that handles all of your power needs, saving you space, money, and set-up hassle. |
• | Our LFP batteries are auto-heating so you can even use them in cold climates without affecting their life-span. |

• | Our Power Kits offer you a safe, 48V power solution for your off-grid home. A 48V system produces the same amount of power, but unlike 12Vs, only a quarter of the electric current passes through thinner wires, producing significantly less heat and power loss. |

• | Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console. |

• | Control DC and AC power directly from the Smart Panel for easy connection and remote monitoring. |
• | Features 6x AC Positions with 20A Circuit Breakers and 12x Fused DC Positions (6x Positions Controllable via Power Kit Console & APP). |

• | The Power Hub can handle up to 3 LFP batteries in parallel, ranging from 2kWh to 15kWh of stored energy. Choose your power combination at will and increase capacity with ease. |
• | 2 kWh LFP Batteries can expand up to 6 kWh. The Expanded 5 kWh LFP Batteries have the ability to expand up to 15 kWh. |

• | Easily customize, monitor and maintain firmware updates using the included Power Kit Console. |

• | The Power Hub features Dual 30A MPPT Charge Controllers that allow for up to 3200 Watts combined! |
• | Add your favorite rigid, flexible or foldable solar panels to your off-grid system and recharge in record time! |
Specifications
Power Hub | |
Manufacturer Name: | EcoFlow |
Sine Wave: | Pure Sine Wave |
DC Output: | 70A, 12V, 1000W or 60A, 24V, 1500W |
AC Main Out: | 30A Max, 120V, 3600W (6000W Surge) (3000W @ Battery Voltage < 50V) |
AC Outlet: | 20A Max, 120V, 2400W |
AC Charger: | 85V - 144V, 3000W |
DC Battery Charger with MPPT: | 60A, 13V - 60V, 1000W Convertible DC |
Solar Charge Controller: | Dual 30A, 15V - 150V, 1600W MPPT Solar Charge Controllers, 3200W combined |
Operating Temp: | -13F to 140F |
Dimensions: | 11.8" x 18.9" x 5.5" (H x W x D) |
Weight: | 31 lbs |
Certs: | CE, UL, FCC Compliance / EMC Class A | 5kWh LFP Battery |
Type: | Lithium Iron Phosphate Chemistry |
Rating: | 51.2V (Nominal), 100Ah |
Lifespan: | 3000 Cycles @ 80% DOD |
LED: | Integrated BMS and LCD Indicator |
Special Features: | Auto-Heating for Cold Environments |
Connection: | Quick Access Fuse Box Mounted |
BMS: | Advanced Battery Safety Protections |
Charging Temp: | -4F to 125F |
Discharging Temp: | -4F to 140F |
Dimensions: | 11.8" x 19.7" x 10.3" (H x W x D) |
Weight: | 89.5 lbs |
Certs: | CE, UL, FCC, IC, UN38.3, IP54 Compliance / EMC Class B | AC/DC Smart Distribution Panel |
AC Main Input: | 30A Max, 120V, 3600W |
DC Main Input for 12V or 24V System: | 12V, 70A, 1000W Max or 24V, 60A, 1500W Max |
AC Output: | 6x AC Positions with 20A Circuit Breakers |
DC Output: | 12 X Fused DC Positions (6 X Positions Controllable via Power Kit Console & APP) |
Monitoring: | All AC & DC Positions Can be Monitored |
Operating Temp: | -13F to 140F |
Dimensions: | 8.3" x 14" x 3.9" (H x W x D) |
Weight: | 5.7 lbs |
Certs: | CE, UL, FCC, IP21 Compliance / EMC Class B | Engine Information |
Model: | R80-i |
Type: | Single cylinder, four-stroke, forced-air cooling, overhead value |
Displacement: | 79.7cc |
Fuel Type: | Unleaded gasoline |
Fuel Tank Capacity: | 4 L / 1.05 gal. |
Engine Oil Capacity: | 0.38 L / 0.1 gal. |
Noise Level (at a 23ft distance): | 56-67dB (full load) |
Continuous Working Time: | 3.5 hrs (full load) | Power Kit Console |
Display: | 7-Inch (diagonal) IPS Touch Screen |
Communication: | RJ45 CAN |
Power Supply: | 12 VDC Power Supply |
Installation: | Quick-Mounting Design |
Operating Temp: | -13F to 140F |
Dimensions: | 4.5” x 8.1” x 0.9” (H x W x D) |
Weight: | 1 lbs |
Cert: | CE, UL, FCC Compliance / EMC Class B |
What's Included
What's Included:
• (1) Power Hub
• (1) 5kWh LFP Battery
• (1) Cable Pack
• (1) AC / DC Smart Distribution Panel
• (1) Battery Mounting Strap
• (1) Power Kit Console Monitor
• (1) Power Hub
• (1) 5kWh LFP Battery
• (1) Cable Pack
• (1) AC / DC Smart Distribution Panel
• (1) Battery Mounting Strap
• (1) Power Kit Console Monitor
Video
