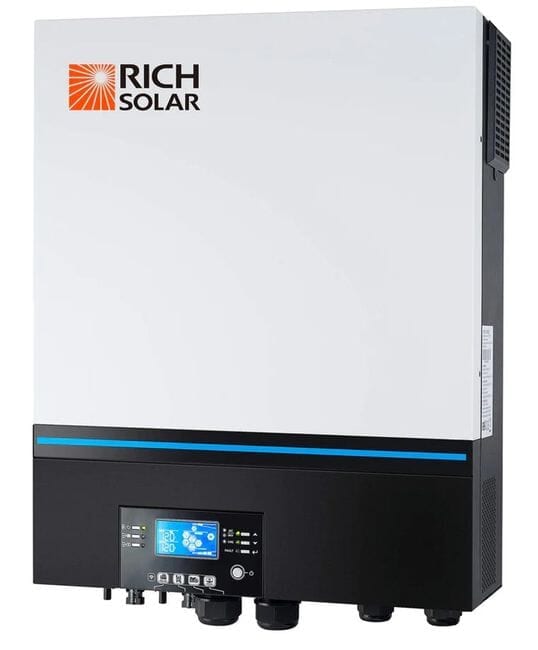

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

Out of Stock

Availability: Out of Stock

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller

Name: Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller
SKU: RS-H6548
Price: 1099.00 USD
Availability: OutOfStock

Write a Review

Ask a Question

Item Code: RS-H6548

Ship Weight: 41 lbs.

Regular Price: $2,399.99

Spring Sale: $1,099.00

You Save 54% ($1,300.99)

Notify me when this item is back in stock

Availability: Out of Stock

Product Details

The Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller is a 2-in-1 DC to AC inverter and Solar Charge Controller. It features built-in Wi-Fi for mobile monitoring (Android/iOS App is available), configurable AC/PV output usage timer and prioritization and is UL Certified.

Powerful:

•	Outputs up to 6500 Watts for all of your power hungry 120V electronics and appliances.

Simple Monitoring:

•	Features status indication with RGB lights.
•	Comes with built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
•	Even supports USB On-the-Go function!

Efficient:

•	Features a 15 ms (personal computers); 20 ms (home appliances) transfer time!
•	Inverts power at a 90-93% Efficiency (Peak)!
•	Features a UL Certification.
•	Replaceable fan design for ease of maintenance and long term use!

Pure Sine Wave:

•	Outputs a reliable Pure Sine Wave form for powering sensitive equipment and achieving reliable operation across the board.

Solar Charge Controller Input:

•	Allows for a Maximum PV Array Input Power of 4000 Watts per line (8000 Watts Combined)! Far more input power than the most Portable Powerstations on the market!
•	The MPPT Charge Controller allows for a maximum power efficiency at an Operating Voltage of 90VDC - 230VDC with an Array Open Circuit Voltage of 250VDC!
•	Selectable input voltage range for home appliances and personal computers.

Specifications

6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller
Manufacturer Name:	Rich Solar
Rated Power:	6500VA/6500W
Parallel Capability:	Yes
AC Voltage Regulation (Battery Mode):	120 VAC +/- 5%
Efficiency (Peak):	90-93%
Waveform:	Pure sine wave
Transfer Time:	15 ms (personal computers); 20 ms (home appliances)
Weight:	40.6 lb
Dimensions:	5.8" D x 17" W x 21.8" H in
Solar Charger & AC Charger
Maximum PV Array Power:	8000W (4000W x 2)
MPPT Range @ Operating Voltage:	90VDC - 230VDC Maximum PV
Array Open Circuit Voltage:	250VDC
Max Solar Charge Current:	120A
Maximum AC Charge Current:	120A
Maximum Charge Current:	120A
Operating Environment
Humidity:	5% to 95% Relative (Non-condensing)
Operating Temperature:	-10C - 50C
Storage Temperature:	-15C - 60C

Product Manual

What's Included

What's Included:

• (1) Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller
• (1) RS-232 Cable
• (1) Software CD
• (1) Parallel Communication Cable
• (1) Current Sharing Cable
• (1) DC Fuse
• (4) Cable Gland
• (1) PV Connectors

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter/Charge Controller
