Anker SOLIX Smart Inlet Box - For Anker SOLIX E10 Home Backup System

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

In Stock

Anker SOLIX Smart Inlet Box - For Anker SOLIX E10 Home Backup System

Write a Review

Ask a Question

Item Code: AS211141

Ship Weight: 15 lbs.

Regular Price: $449.00

Sale Price: $399.00

You Save 11% ($50.00)

Product Details

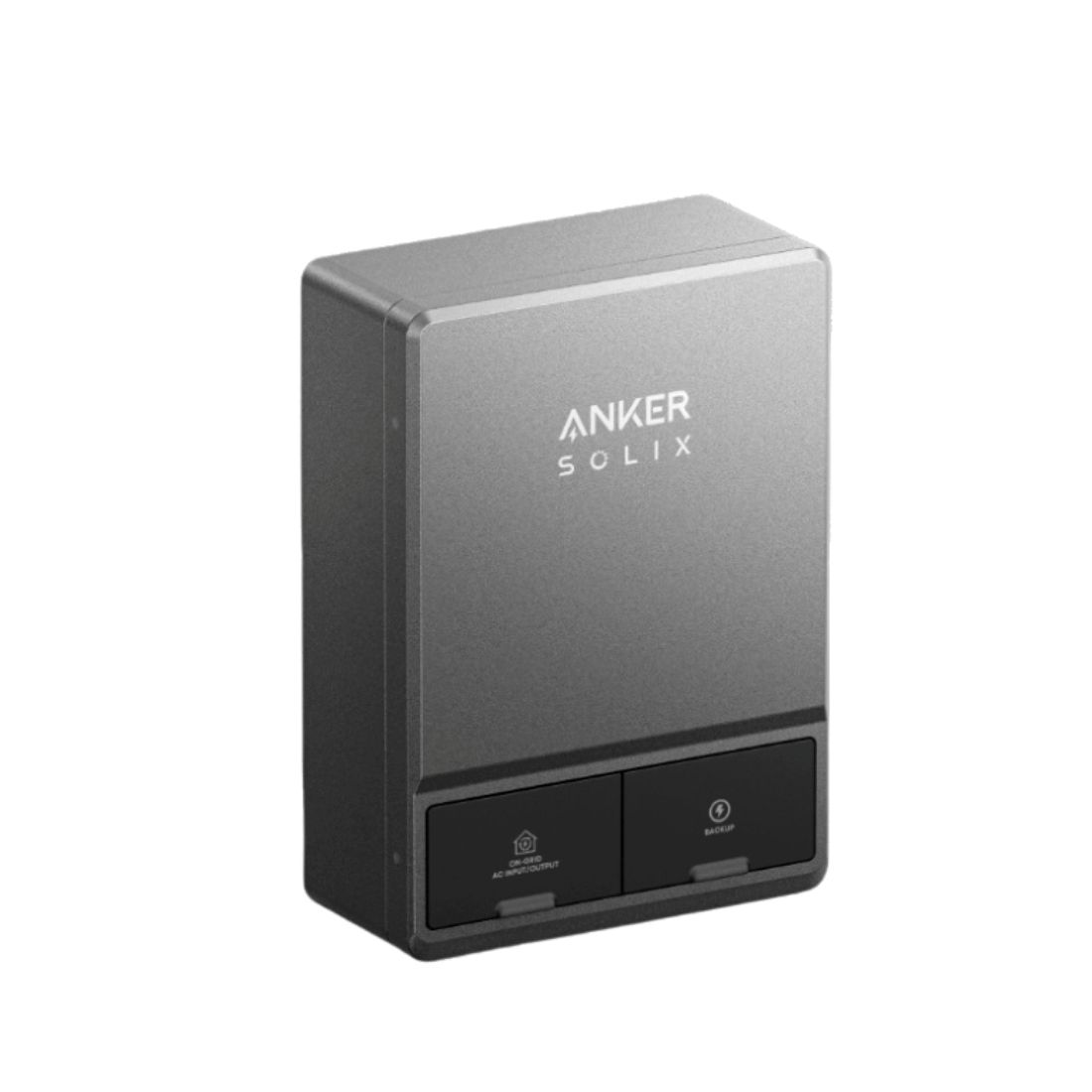

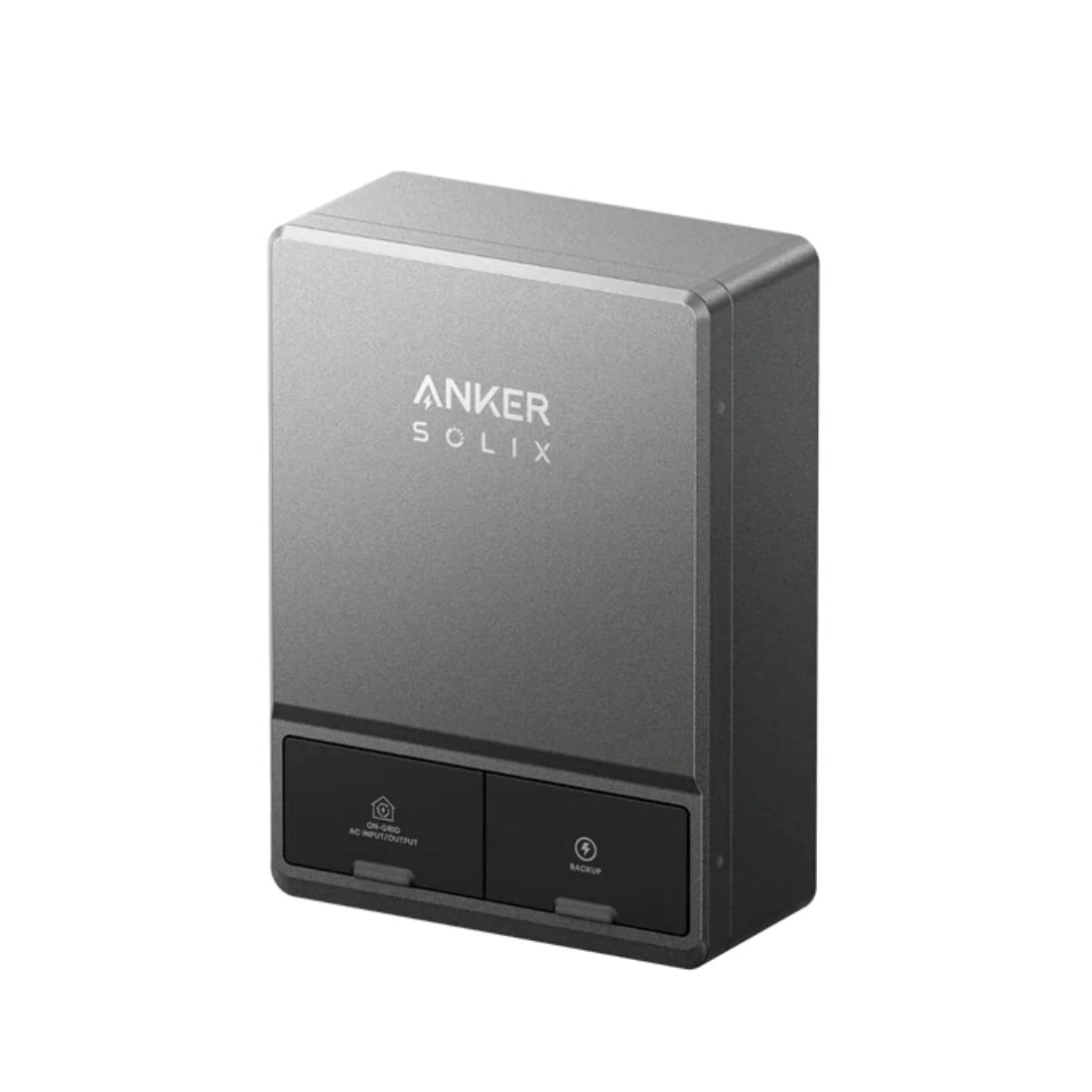

The Anker SOLIX Smart Inlet Box is a weather resistant, outdoor ready energy interface designed to integrate seamlessly with whole home backup systems such as the SOLIX E10. It supports up to 100A of continuous current on both on grid and backup power lines, enabling reliable power delivery during outages. Rated NEMA Type 3R for protection against rain, snow, and dust, it allows homeowners to manually switch to backup power and charge from the grid or connected solar arrays while supporting smarter energy use. With built in current sensors and prewired cables, the Smart Inlet Box enables real time power monitoring and flexible installation near the main electrical panel, enhancing overall home energy resilience and efficiency.

Whole Home Backup Power Inlet:

•	Please Note: Installation MUST be performed by a licensed electrician
•	Smart Energy Monitoring: Integrated current sensors support energy tracking and optimized battery charging when paired with compatible systems.

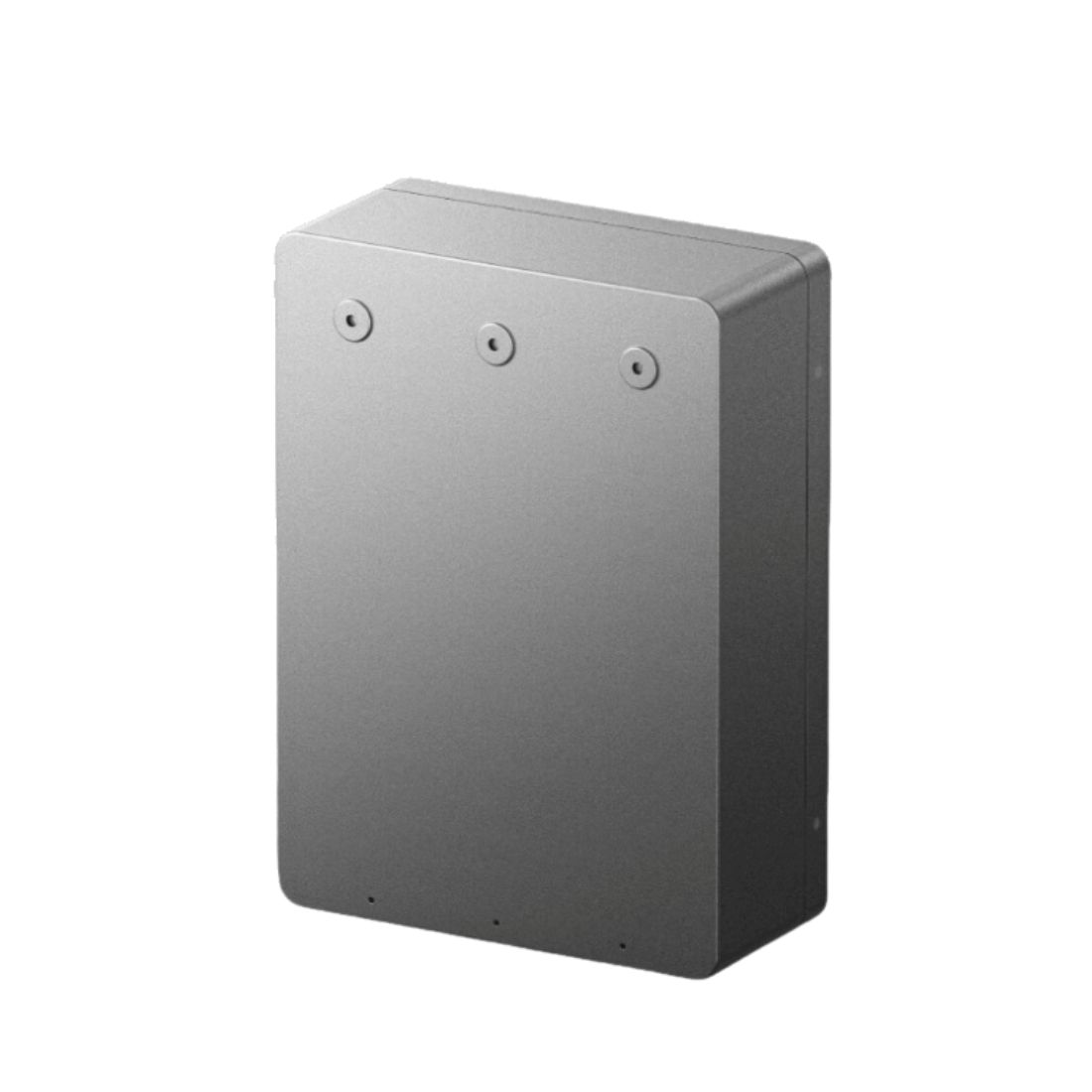

•	Flexible Wall Mount Design: Prewired on grid and backup cables allow clean installation near the electrical panel.
•	Durable and Certified: Built to professional safety standards for long term reliability.
•	System Compatibility: Designed to pair with Anker SOLIX home energy systems and accessories for a complete backup solution.

Whole-Home Backup and Smart Daily Savings:

•	Backup Port: Keeps your home running with reliable backup power when the grid goes down.
•	On Grid Port: Charges during low-cost periods and powers your home when electricity prices rise.

Reduce Up to 80% of Electricity Bills:

•	Optimized energy savings. Works seamlessly with existing solar power systems and grid connections through AC coupling, storing excess solar power and off-peak electricity to avoid expensive peak rates and maximize your savings.

Ready for Anything Power Protection:

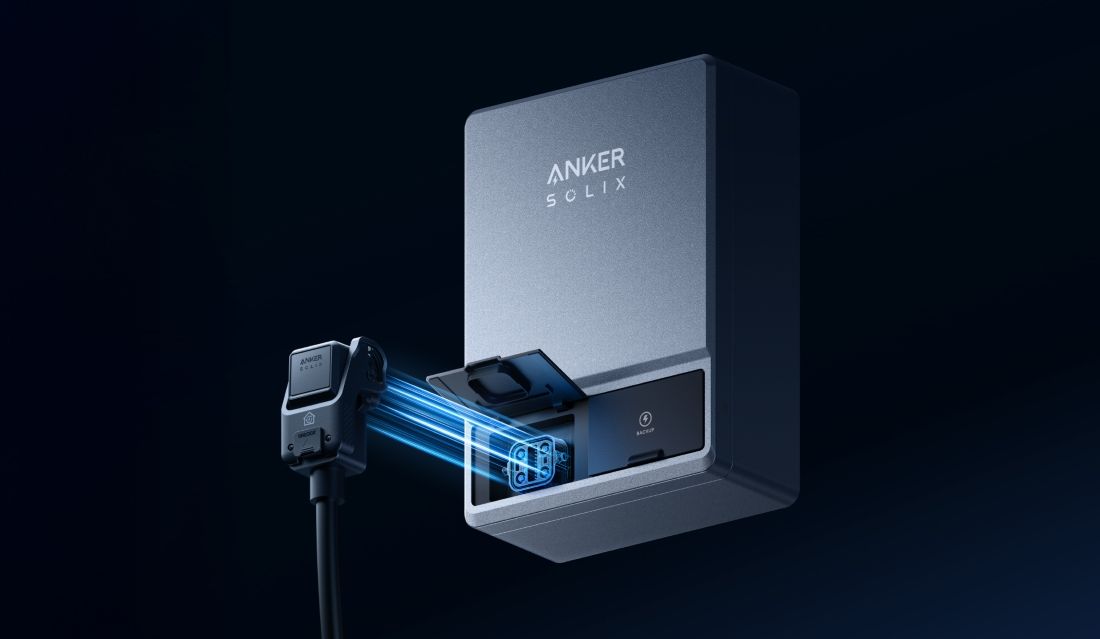

•	Plug and Play: Simple plug in installation lets licensed electricians get you up and running in minutes with no load transfer required.

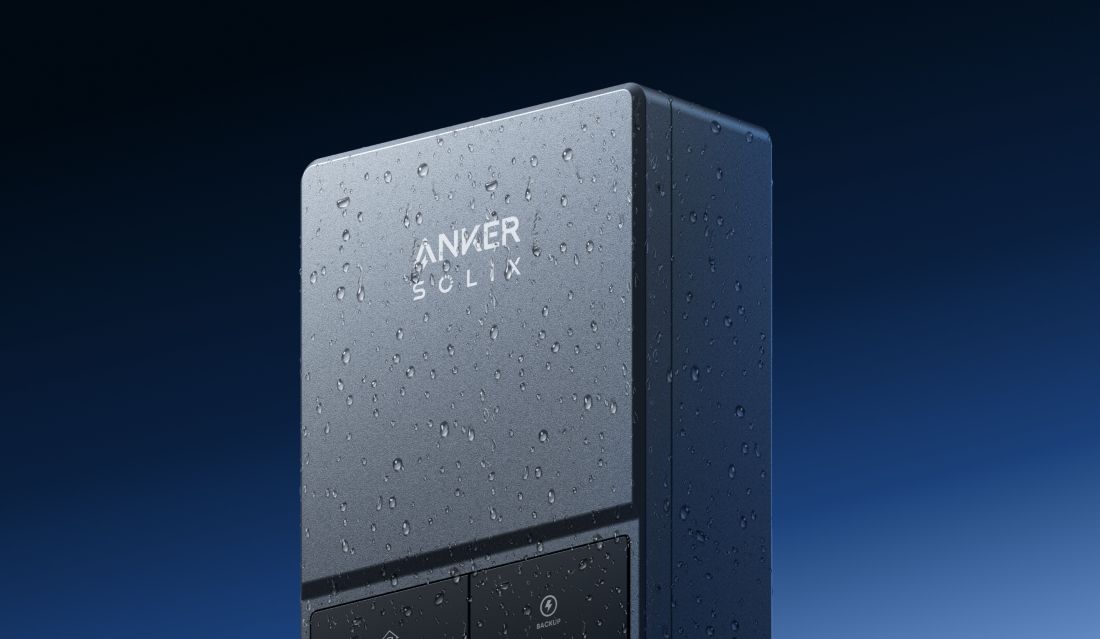

•	Ultimate Outdoor Resilience: Built to thrive outdoors, the NEMA 3R rated design delivers reliable performance from -4 F to 131 F while standing strong against rain, snow, and dust.
•	Storm Guard Mode: Stay ahead of the storm. When severe weather alerts appear, the system automatically recharges using solar and grid power to ensure you are prepared before outages strike.

Specifications

General Information
Manufacturer Name:	Anker
Dimensions :	16.5" x 11" x 5.2" in
Weight:	14.3 lbs
Operating Temperature:	-4 F to 131 F (-20-55 C)
Rated Voltage:	120 / 240 VAC (Split Phase)
Rated Frequency:	60Hz
Maximum On-Grid Port Continuous Current:	100A (32A Max for E10 On-Grid Port)
Maximum Backup Port Continuous Current:	100A (40A Max for E10 Backup Port)
Enclosure Type:	NEMA TYPE 3R
Wall Mounting:	Installation Option
Manufacturer Warranty:	10 Years

What's Included

What's Included:

• (1) Anker SOLIX Smart Inlet Box
• (1) On-Grid Cable
• (1) Backup Power Cable
• (3) Current Transformer (200A)
