Rich Solar 1600 Watt 24V Complete Solar Kit - 4800Wh Storage

Click to Zoom

Satisfaction Guarantee

Add to Wishlist

In Stock

Rich Solar 1600 Watt 24V Complete Solar Kit - 4800Wh Storage

Name: Rich Solar 1600 Watt 24V Complete Solar Kit - 4800Wh Storage
SKU: RS-CK1600
Price: 4275.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: RS-CK1600

Ship Weight: 400 lbs.

Regular Price: $4,999.00

Sale Price: $4,275.00

You Save 14% ($724.00)

Product Details

Specifications

What's Included

Product Details

Want to have the best solar-powered travel trailer? Our 1600W 24V complete kit comes with all the products and components you need to start harnessing, storing, and using the energy of the sun. This kit includes 8 high efficiency 200W Monocrystalline panels with 9 busbars, a 60A MPPT controller, a 3000W 24V inverter, and two 100 AH 24V Lithium batteries. Install this camper solar kit on your RV or tiny home and start your solar adventure today!

High Efficiency Solar Panel:

•	With the highest grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with anti-reflective coating to maximize light absorption.

Simple Installation:

•	Installation is a breeze with our pre-assembled wiring harness that doesn�t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades or additions simple and easy� just plug in and go!

Reliable and Convenient:

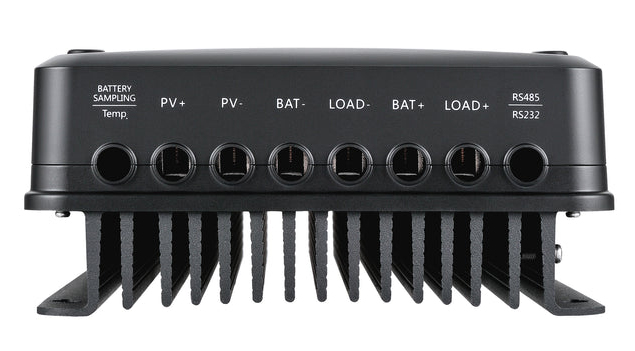

•	The digital 60 Amp MPPT charge controller lets you gauge your power with a glance, providing real time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.
•	Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%. Automatically detects 12V/24V/36V/48V DC system voltages.

25-Year Output Warranty:

•	Buy with confidence knowing that your solar investment will last for the long-haul.

3000 Watt Industrial Pure Sine Wave Inverter:

•	Our 3000 watt Industrial Pure Sine Wave Inverter is ideal for large loads that require a clean, pure source of AC household power.

24V 100Ah LiFePO4 Lithium Iron Phosphate Battery:

•	Stores a massive combined 4,800 Watt Hours of Power for all of your appliances and electronics!
•	The 24V lithium battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies.
•	The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. Easily uses the same space as your existing 24V battery and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.

Package Includes:
8x 200 Watt Monocrystalline Solar Panel
1x 60A MPPT Charge Controller
2x 100AH 24V Lithium Battery
1x 3000W 24V Inverter
1x 30� 10 AWG Solar Cable Set (Panel to Controller)
1x 8� 4 AWG Battery Cable Set
8x Mounting Z Brackets (one set)
1x 30A MC4 Inline Fuse Holder
1x Y Branch Parallel Adapters
1x 2 Gauge 1 FT inverter Battery Cable Red
1x 2 Gauge 1 FT Inverter Battery Cable Black

Specifications

Solar Panel
Manufacturer Name:	Rich Solar
Dimensions:	58.7" x 26.8" x 1.4" in
Weight:	26.5 lbs
Maximum Power (Pmax):	200W
Maximum Power Voltage (Vmp):	20.4V
Maximum Power Current (Imp):	9.80A
Open Circuit Voltage (Voc):	24.3V
Short Circuit Current(Isc):	10.2A
Warranty:	25 years output warranty
3000 Watt Pure Sine Wave Inverter
Input:	DC 24V
Output:	100 - 127V AC 60HZ
Output Power:	3000W
Surge Power:	4000W
Output Waveform:	Pure sine wave
24V 100Ah LiFePO4 Battery Electrical Specifications
Nominal Voltage:	25.6V
Nominal Capacity(at .5C, 77F):	100Ah
Minimum Capacity (at .5C, 77F):	95Ah
Expected Cycle Life:	>3000 cycles w/1C charge and discharge rate, at 77F, 80% DOD
24V 100Ah LiFePO4 Battery Operating Specifications
Charge Method:	Smart charger, constant current, constant voltage
Operating Voltage:	25.6 V
Energy:	2560 Watt Hours
Charge Voltage Range (Max 14.6V):	28.8 - 29.2V
Continuous Charge Current:	50A
Continuous Discharge Current:	100A
Over Voltage Shutdown:	31.2 +/- 0.2V
Discharge Cut-off Voltage:	21.6V =/- 0.5V
Self Discharge (stored at 50% SOC):	< 3%/month
Waterproof:	IP65
24V 100Ah LiFePO4 Battery Temperature Performance
Charge Temperature:	32 F to 140 F
Discharge Temperature:	-4 F to 140 F
Storage Temperature:	-4 F to 140 F
BMS High Temperature Cut-off:	149F
BMS Low Temperature Cut-off:	32F
24V 100Ah LiFePO4 Battery Physical Specifications
Battery Dimensions:	19" L x 6.7" W x 9.5" H
Weight:	42.5 lb
Group Size:	62
Battery post size:	5/16"
Warranty:	3 Year Manufacturer Defect
24V 100Ah LiFePO4 Battery BMS Operation
Over charge detection voltage:	3.65 +/- 0.05V
Over charge detection delay time:	0.96 - 1.4s
Over charge release voltage:	3.55 +/-0.05V
Maximum charge voltage:	3.65 +/-0.05V
Over discharge detection voltage:	2.0V +/- 0.05V
Over discharge detection delay time:	1s
Over discharge release voltage:	2.7V +/- 0.10V
Over Current Protection Over current detection delay time:	9 +/- 2ms
Over current release condition:	Cut load
Polarity Reverse Protection:	Yes
Short Circuit Protection:	Yes

What's Included

What's Included:

• (8) 200 Watt Monocrystalline Solar Panel
• (1) 60A MPPT Charge Controller (RS-MPPT60)
• (2) 100AH 24V Lithium Battery (RS-B24100)
• (1) 3000W 24V Inverter
• (1) 30� 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• (1) 8� 4 AWG Battery Cable Set
• (8) Mounting Z Brackets (one set)
• (1) 30A MC4 Inline Fuse Holder (RS-SC15F)
• (1) Y Branch Parallel Adapters (RS-Y2)
• (1) 2 Gauge 1 FT inverter Battery Cable Red (RS-C21R)
• (1) 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
