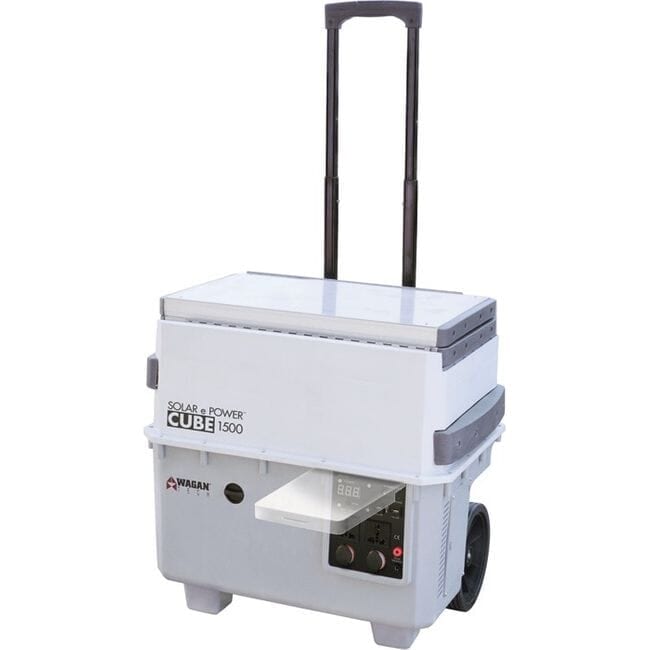

Solar e Power Cube 1500 Plus Portable Solar Generator 1500 Watt Inverter / 100 Ah Battery

Specifications
Manufacturer:	Wagan
Product name:	Solar e Power Cube 1500 Plus
Product code:	EL-2547
Product type:	Solar power generator
Dimensions:	20.87" x 20.87" x 14.57"
Weight:	116.6 lbs
Outlets:	(2) 115 volt AC outlet (2) 12 volt DC outlet (2) 5 volt USB outlet
Warranty:	2 years (excluding battery)
Charging times
Initial AC charge:	Up to 43.2 hours
Solar panel charging time:	32.4 hours peak sunlight
Charging system specifications
Solar panel max output:	5 panels x 16W (80W built-in)
Solar panel type:	Monocrystalline
Solar panel efficiency:	17%
Solar charge controller max input:	20A
AC charger rated current:	90-230V AC, 47- 63 Hz, 12V DC 5A
Max solar panel array power:	Expandable up to 300W
Inverter specifications
AC output voltage (nominal):	115V AC, 60Hz ± 4Hz
AC output power capacity (continuous):	1,500W (3,600 peak)
AC output waveform:	Modified sine wave
Operating / storage temperature:	32 degrees F to 104 degrees F (0 degrees C to 40 degrees C)
Maximum Inverter Efficiency:	90%
No load current:	< 0.5A
Low battery alarm (nominal):	10.5V ± 0.5V
Low battery shutdown (nominal):	9.5 ± 0.5V
12-Volt DC Specifications
Internal battery type:	Sealed AGM/Gel Hybrid
Internal battery voltage (nominal):	12V DC
Internal battery capacity:	100 Ah
Maximum load current through 12-volt DC power socket (continuous):	15A
DC Power Socket circuit breaker rating (internal, automatic reset):	15A
USB max output current:	2.1A
Sample AC applicance times
AC Powered Products	Est. Operating Time
Radio:	4 Watts, 250 hoursC
Compact Florescent Light:	20 Watts, 50 hours
Laptop Computer:	65 Watts, 13 hours
Ceiling Fan:	100 Watts, 9 hours and 30 minutes
Desktop computer with 15" monitor:	200 Watts, 4 hours and 18 minutes
Sony Playstation 3 Video Game Console:	200 Watts, 4 hours and 18 minutes
40" LCD TV:	200 Watts, 4 hours and 18 minutes
1/2" Drill:*	750 Watts, 45 minutes
Microwave oven:*	1000 Watts, 30 minutes
Coffee maker:	1500 (max output), 10 minutes
Sample DC applicance times
DC Powered Products	Est. Operating Time
Smartphone:*	6 Watts, 160 hours
Tablet:	12 Watts, 80 hours
Portable cooler:	30 Watts, 30 hours
Air compressor:	100 Watts, 9 hours and 30 minutes

*Assumes continuous operation (send or receive)

Frequently Asked Questions:

Q: What kind of products does the Solar e Power Cube 1500 Plus cater to?
A: This solar power generator is equipped with an internal battery that can supply power to AC, DC or USB devices, including but not limited to TVs, radios, microwaves, ceiling fans, desktop computers, smartphones and tablets.

Q: What kind of battery does it carry?
A: This portable solar generator is loaded with a 100 AH Sealed AGM/Gel Hybrid battery which is ideal for deep cycle applications.

Q: How many outlets does it have?
A: This product has 115 volt AC outlets, two 12 volt accessory outlets for powering DC appliances and two USB ports for charging mobile devices.

Q: What can I use to charge its battery with?
A: The battery of this solar generator for disaster preparedness and outdoor activities can be charged with its 5 built-in 16W solar panels. It can also draw power from AC or DC outlets with the included AC and DC recharging adapters.

Q: How will I know if its battery has power to operate my appliances?
A: This mobile solar generator features a digital LED display with weather resistant faceplate cover that provides users with information on battery status.

What's Included:

• Solar e Power Cube 1500 Plus
• AC and DC recharging adapters
• Weather resistant fabric cover
