Sealite SL-75 Solar Marine Lantern - Green - 3-5 NM Visibility

Name: Sealite SL-75 Solar Marine Lantern - Green - 3-5 NM Visibility
SKU: SL-75-G
Price: 1799.00 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: SL-75-G

Ship Weight: 6 lbs.

Regular Price: $1,999.00

Sale Price: $1,799.00

You Save 10% ($200.00)

Product Details

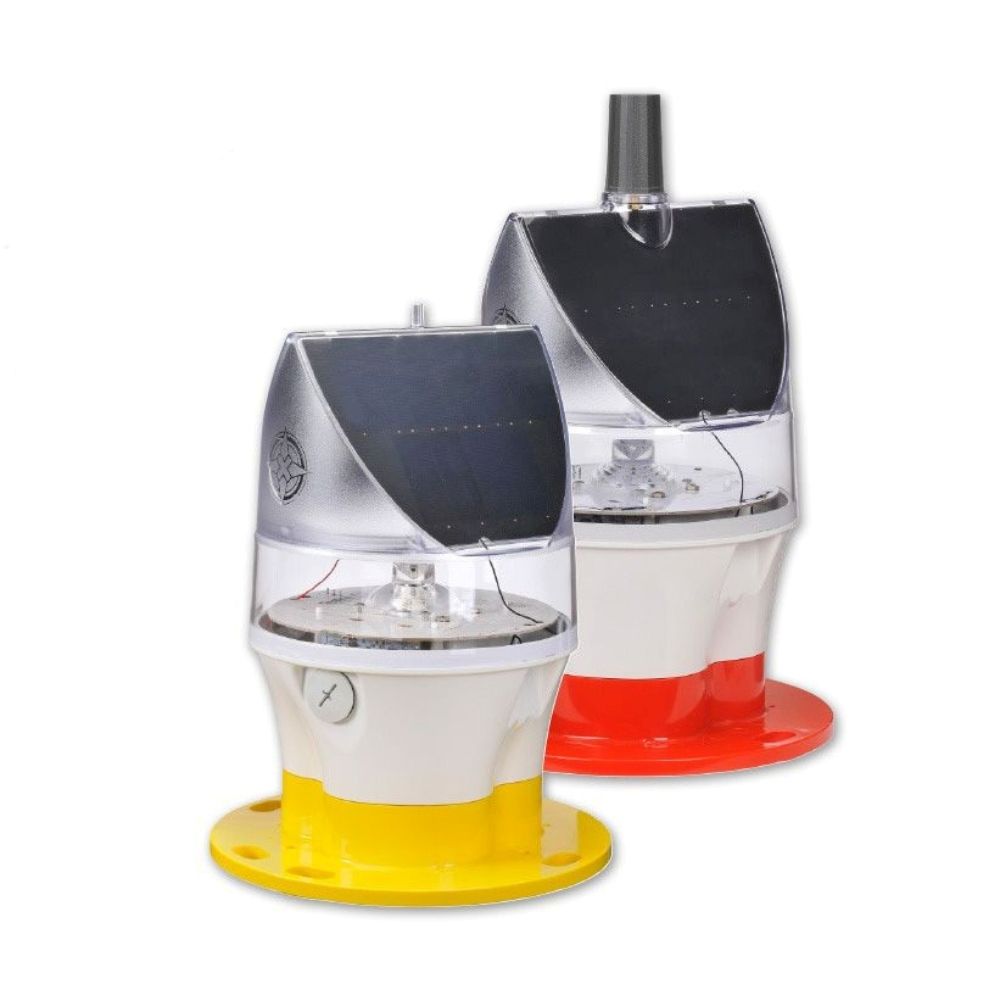

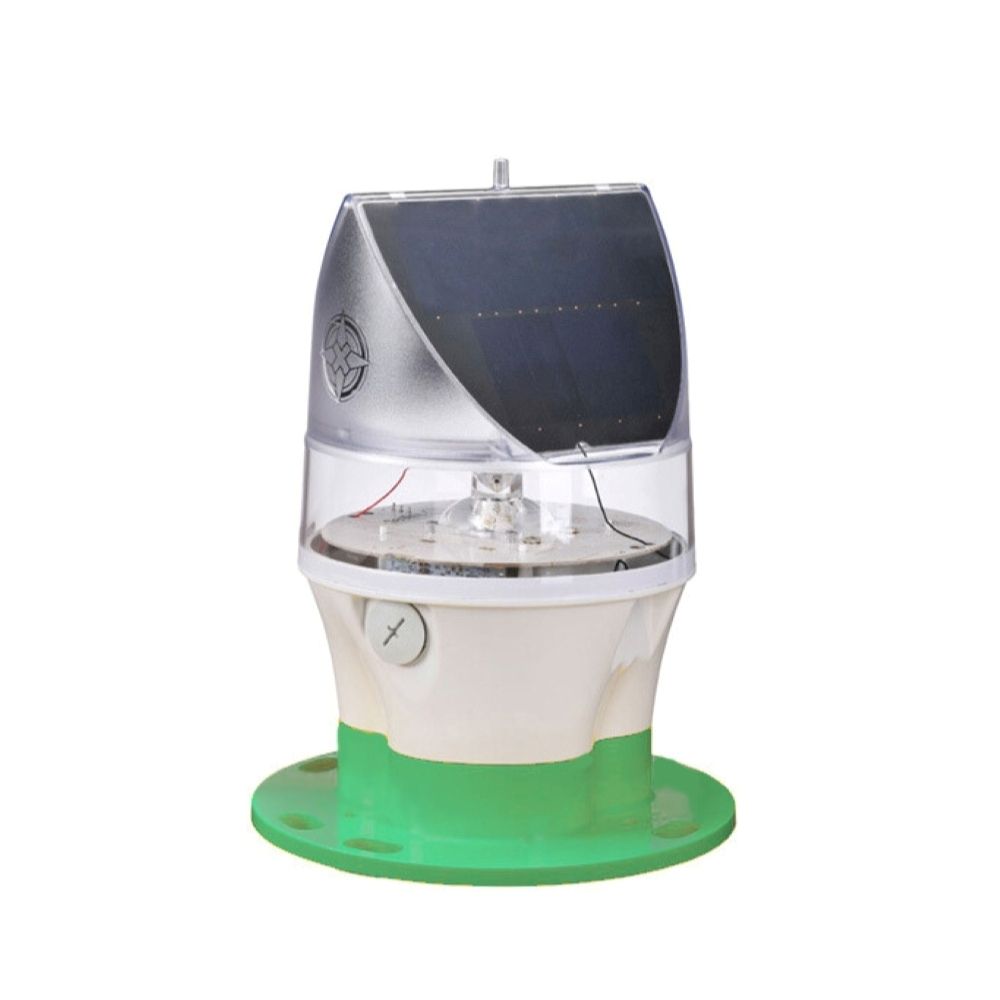

The Sealite SL-75 Solar Marine Lantern - Green is a next-generation solar marine lantern with up to 5 NM visible range (typically programmed between 3-5 nm). Its dual panel design is unique in its ability to "track the sun" and operate reliably in low sunlight environments such as poor solar zone locations.

•	Practical: Ideal for Pilings, Docks, Buoys, Aquafarms, Sea Ports, Threshold lighting, Runways, Aids-to-navigation, Marina Lighting and Cranes.

•	LED Color: Outputs a classic Green light.

•	Dual High Performance: Angled solar modules obtain maximum sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments. Tilted solar modules are less susceptible to fouling or snow cover.

•	Bluetooth Programming and Maintenance: Completely programmable via the SealitePro App, configure and monitor the SL-75 from a distance up to 50 meters. An inbuilt solar calculator confirms the lanterns optimal operating performance, at the set location.

•	Reliable: Battery life expectancy is five years with product life up to 15 years and a three-year warranty.

•	Customizable: 310 adjustable flash patterns and programmable intensities

•	Long Lasting: User replaceable NiMH battery for long service life & wide temperature range operation

•	Heavy Duty: Premium grade, UV resistant polycarbonate body and lens material

•	Waterproof: Features durable IP 68 rating for long lasting performance

•	Smart Design: Features a Ventilated battery compartment for extended battery lifespan.

•	Efficient: Includes High-efficiency solar cells embedded in shatterproof polyurethane.

•	Easy Installation: Simple installation using 3 types of install options: 3 & 4 hole 200mm bolt pattern, 3 hole 150mm bolt pattern, 4 hole 162mm bolt pattern.

•	Accessible Via Star2M: The SL-75 is available with an optional integrated Iridium Satellite module enabling two-way monitoring and control using the Iridium Low Earth Orbit satellite network (contact us directly for more information).

•	Optional External Features: Optional On/Off switch and charge port add-on's available (contact us directly for more information).

•	Optional Tracking Features: Offers GPS and Satellite add on features (not included) (contact us directly for more information).

•	Optional Lens Degrees: Features the ability to change lenses for higher degrees of visibility (contact us directly for more information).

•	Optional Larger Battery Pack: Features the ability to incorporate 17AH, 21AH or 29AH battery packs for longer lasting performance! (contact us directly for more information)

Specifications

SPECIFICATIONS
Manufacturer:	Sealite
LED Type:	Green
Light Source:	High Efficiency LED
Typical Maximum Intensity (cd):	SL-75-7D: 104 SL-75-5D: 129
Visible Range (NM):	3-5
Horizontal Output (degrees):	360
Vertical Divergence (degrees):	7 (standard) / 5 (optional)
Available Flash Characteristics:	310 plus custom characters
Intensity Adjustments:	Multiple intensity settings
LED Life Expectancy (hours):	Around 100,000
Current Draw (mA):	Refer to Sealite Power Calculator
Circuit Protection:	Integrated
Nominal Voltage (V):	3.6
Autonomy (days):	around 30 (14 hour darkness, 12.5% duty cycle)
Temperature Range:	-40 to 80C
Solar Module Type:	Monocrystalline
Output (watts):	5 (2 x 2.5 watt)
Battery Type:	High grade NiMH
Battery Capacity (AH):	Standard: 17.2 Large: 21.5 X Large: 28.8
Nominal Voltage (V):	3.6
Battery Capacity (Ah):	4AH
Nominal Voltage (V):	3.6
Body Material:	LEXAN Polycarbonate � UV-stabilized
Lens Material:	LEXAN Polycarbonate - UV-stabilized
Lens Design:	150 / 5 & 7/8ths
Lens Design:	Single LED Optic
Mounting:	3 types: 3 & 4 hole 200mm bolt pattern, 3 hole 150mm bolt pattern, 4 hole 162mm bolt pattern
Height (mm/inches):	Standard: 314 / 12 3/8 SATCOM: 361 / 14 7/32
Width (mm/inches):	231 / 9 1/8
Mass (kg/lbs):	2.5 / 5 1/2 (standard model)
Product Life Expectancy:	Up to 12 years
CE:	IFCC Part 15 Rules & ICES-003 EN61000-6-1:2007 IEC61000-6-1:2005 EN61000-6-3:2007 IEC61000-6-3:2006
IALA:	Signal colors compliant to IALA E-200-1
Quality Assurance:	ISO 9001:2015
Waterproof:	IP68
Trademarks:	SEALITE and Star2M are registered trademarks of Sealite Pty Ltd
Warranty:	3 Years
Options Available:	Satellite Connectivity GPS Synchronization Monitoring & Control System SL-75-5D (5 Degree divergence model) Charging Port 21Ah and 29Ah larger battery capacity options Bird Deterrent

What's Included

What's Included:

• Sealite SL-75 Solar Marine Lantern - Green - 3-5 NM Visibility
