| Specifications |
| Manufacturer: |
BioLite |
| Product weight: |
16kg (35.3 lbs) |
| Dimensions: |
400 x 289 x 267mm (15.7" x 11.4" x 10.5" in) |
| Battery Capacity: |
998.4Wh (51.2V, 19.5Ah), LiFePO4 |

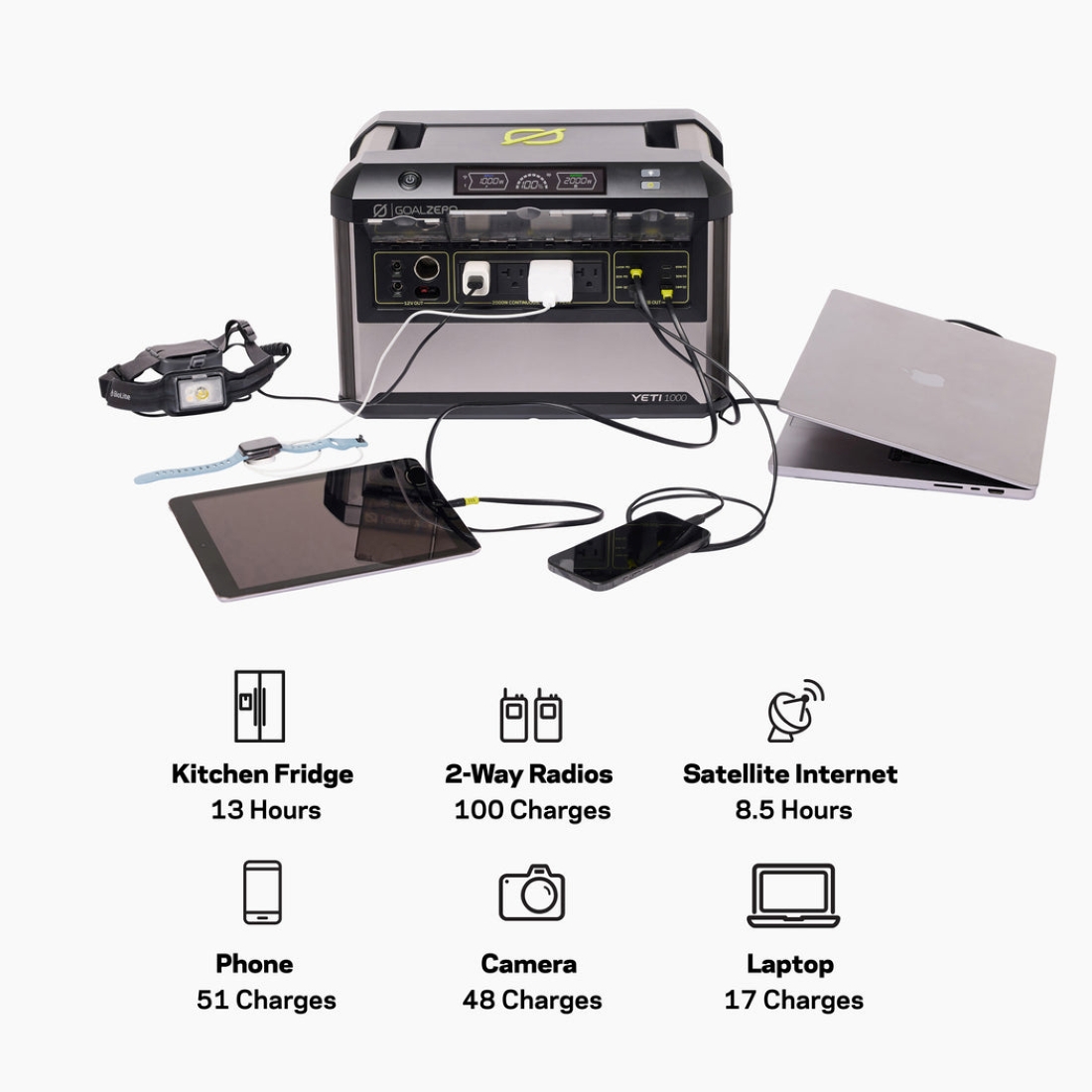

| Output Ports: |

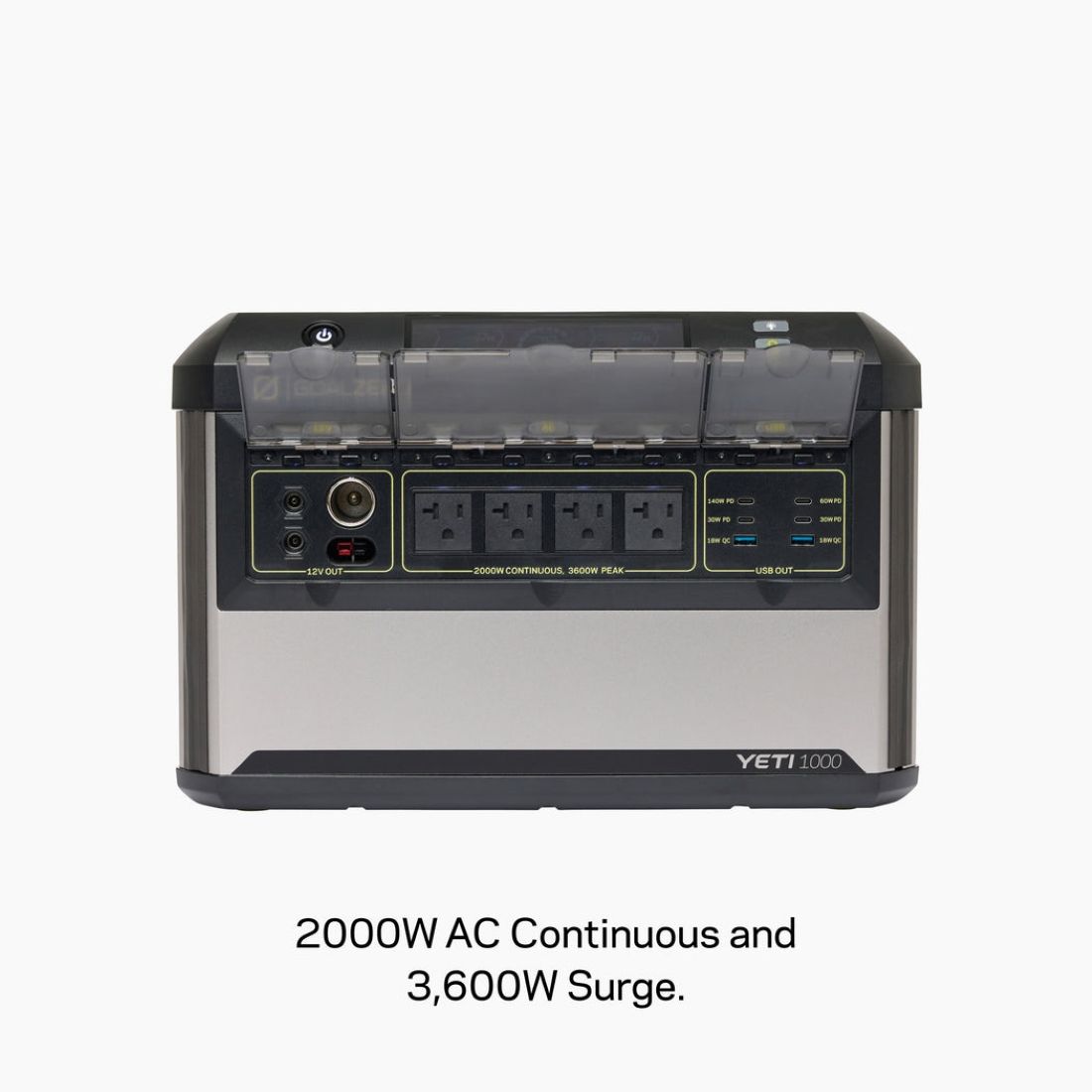

AC Inverter (60Hz - pure sine wave): 2000 W Continuous, 3600 W Surge - 120 V AC 60Hz, 20A: 2000 W Continuous, 3600 W Surge
AC (Bypass): 1752W
120 V AC 60Hz
AC Single Port (60Hz - pure sine wave): 2000W - 120 V AC 60Hz
Totable Combined AC Output: 2000W
(2x) USB-A: 5-12V Up to 3A: 18W max
Total Combined USB-A: 36 W
(1x) USB-C: 140 W - 5-28V Up to 5A: 140W max
(1x) USB-C: 60 W - 5-20V Up to 3A: 60W max
(2x) USB-C 30W - 5-20V Up to 3A: 30W Max
Total Combined USB-C: 260W
12V Auxiliary Power Port: 162W - 13.5V 12A (Continuous) 44A (Surge, 100ms): 162W
12V High Power Port (HPP): 405W - 13.5V 30A (Continuous) 44A (Surge, 100ms): 405W
(2x) 12V 6mm Output Port: 135W - 13.5V 10A (Continuous) 44A (Surge, 100ms): 135W
Total Combined 12V Output: 405W
|
| Input Ports: |
AC Fast Charge: 1000W - 104-127 VAC 60Hz, 8.3A: 1000W
AC Low Speed: 500W - 104-127 VAC 60Hz, 4.17A: 500W

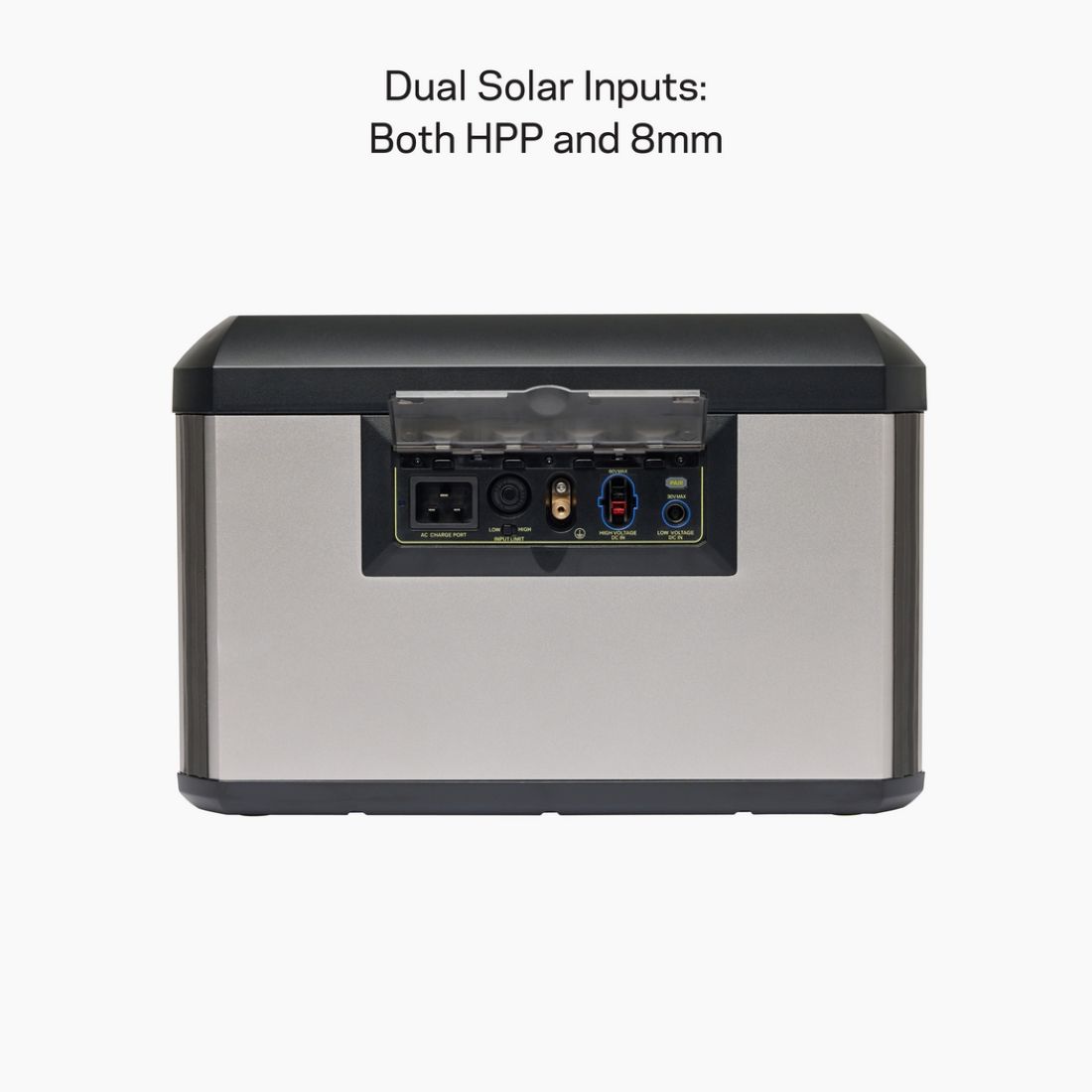

8mm Low Voltage Input (solar & car charge): 300W max
13.2-30V, 12.6V shutoff, 10A: 300W max
High Power Port (HPP) Input (solar): 600W max 12.3-60V, 11.8V shutoff, 20A: 600W max

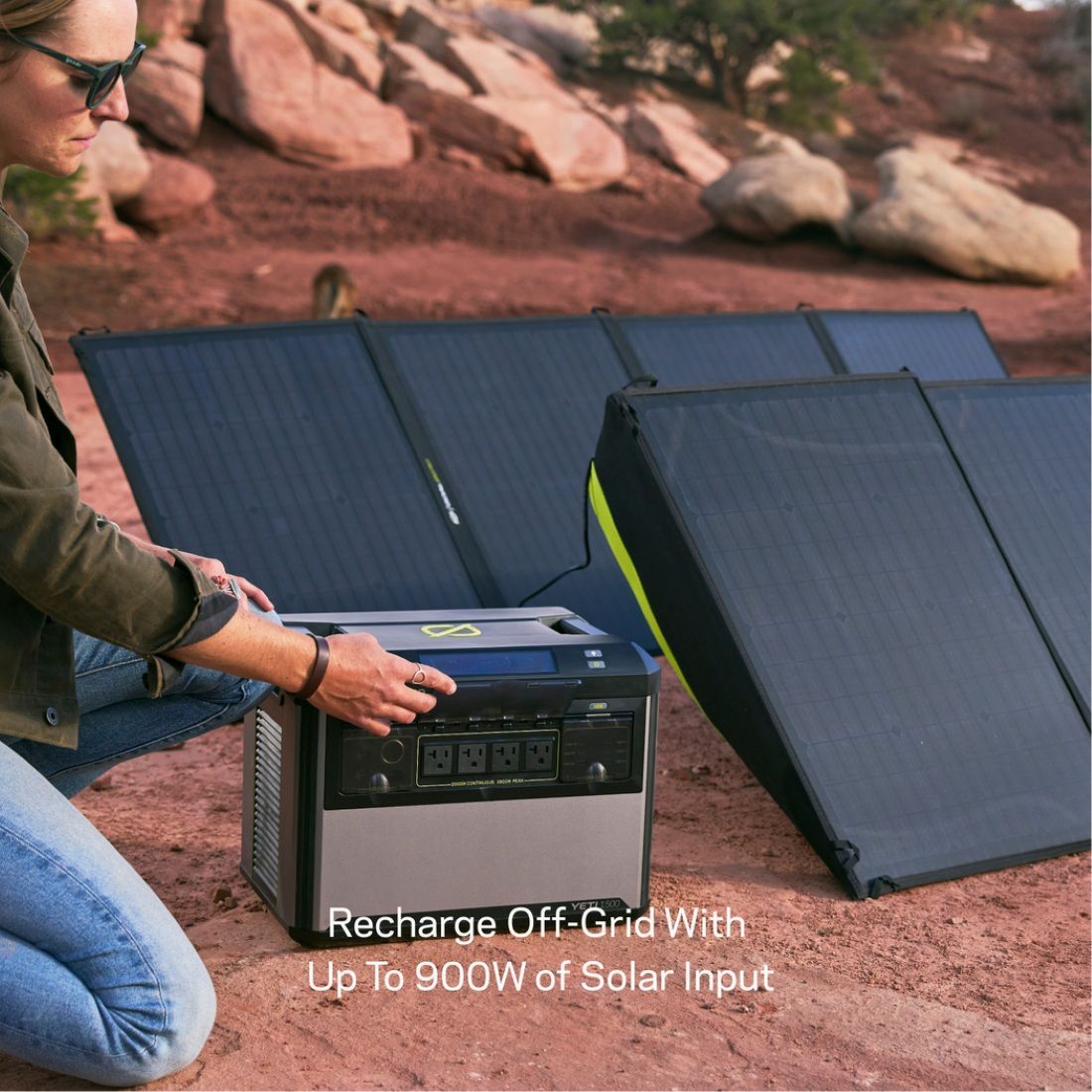

Total Combined DC/Solar Input: 900W |
| Charge Management: |
Maximum Power Point Tracking (MPPT) |
| AC Outputs: |
AC Inverter (60Hz - pure sine wave): 2000W Continuous, 3600W Surge
AC (Bypass): 1752W
AC Single Port (60Hz - pure sine wave): 2000W
Totable Combined AC Output: 2000W |
| Charge Temperature Range: |
32 to 104 F (0 to 40 C) |
| Discharge Temperature Range: |
-4 to 104 F (-20 to 40 C) |
| Charge Time To 80%: |
AC Fast Charge (included cable): 1.2 hrs
AC Low Speed (included cable): 2.4 hrs
12V Car Charger (10A): 9.3 hrs
Solar Input Max 900W: 3 hrs |

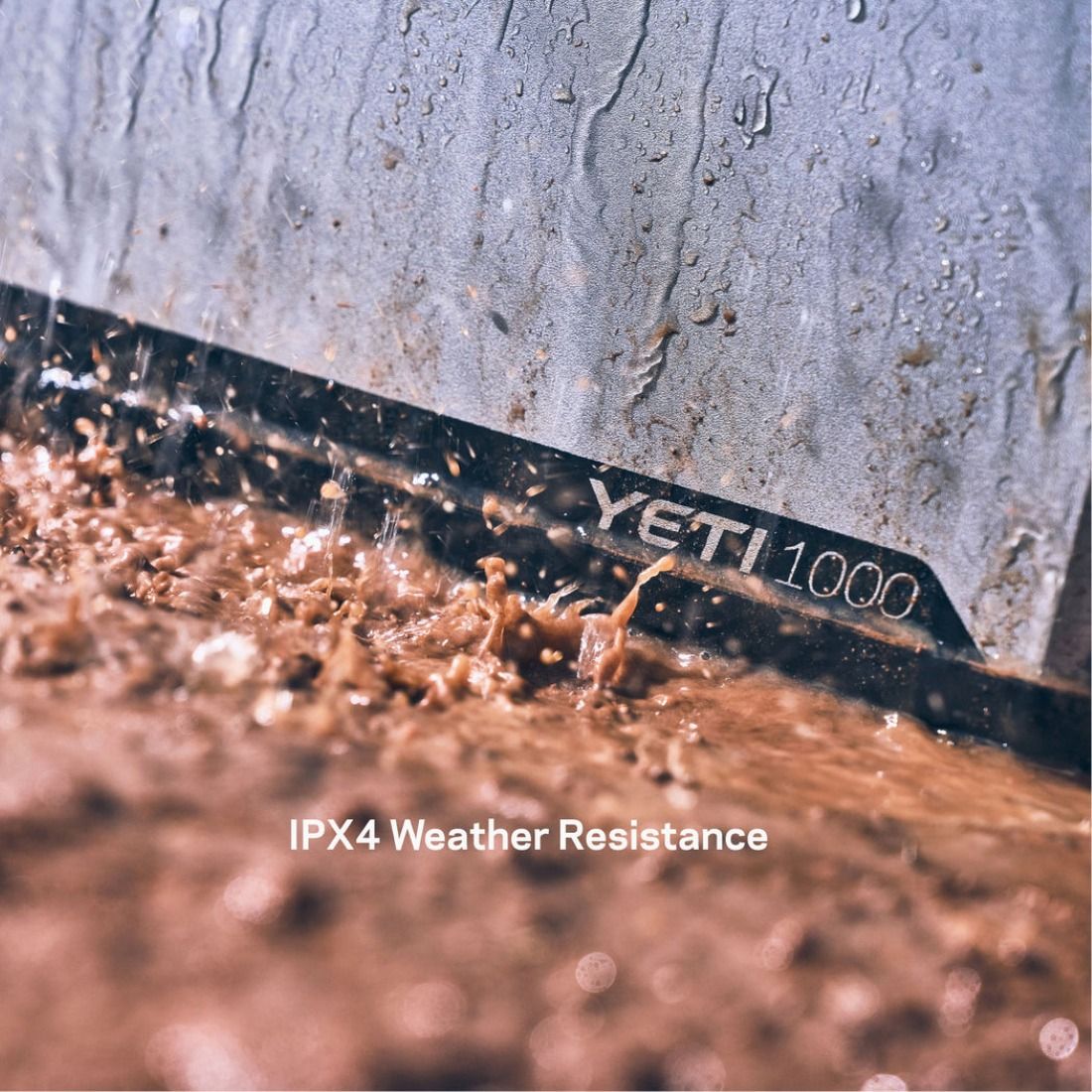

| Ingress Protection: |
1PX4 |
| Automatic Power Switching (APS): |
Grid to battery in <15ms |
| Recharge Times: |

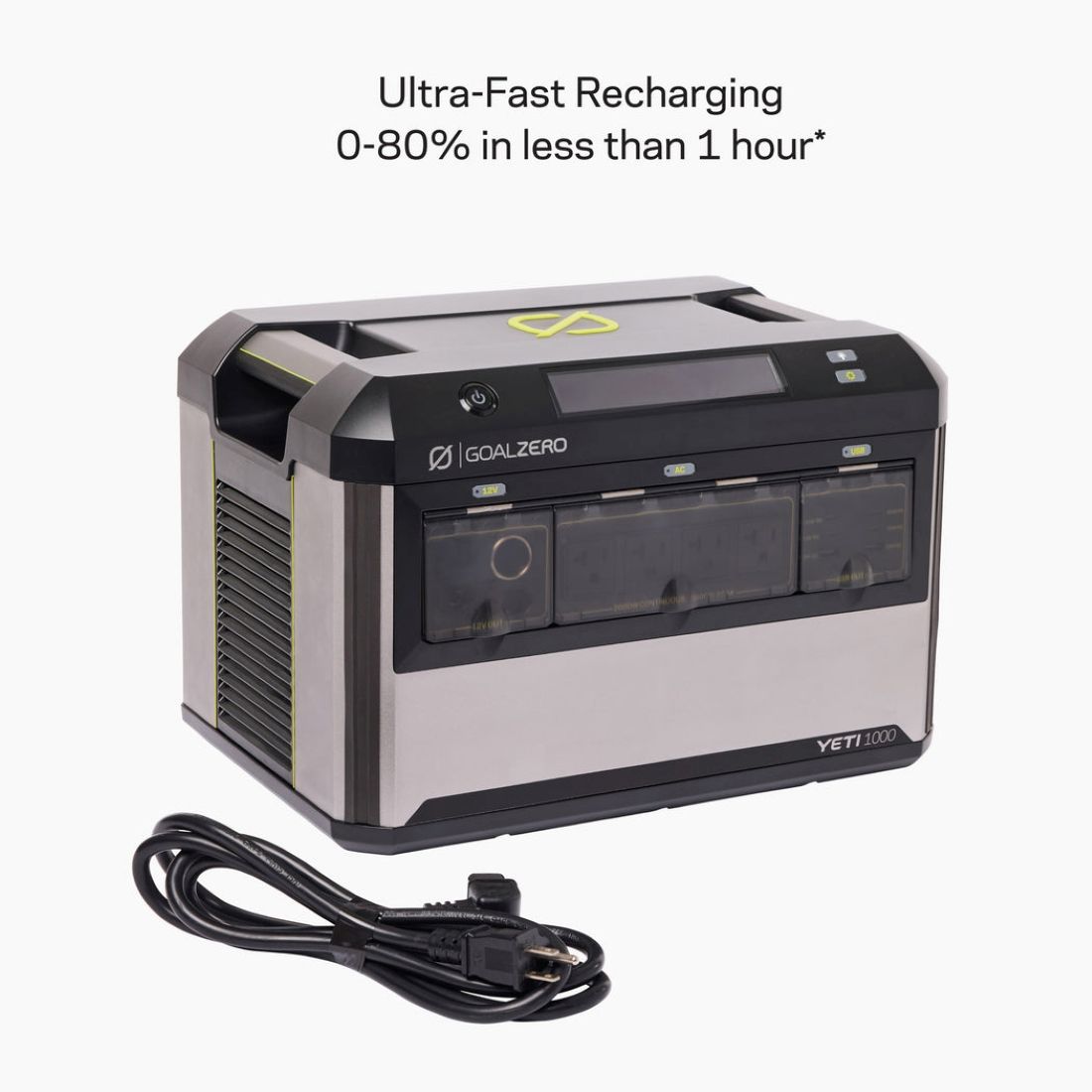

AC Fast Charge (included cable): 1.2 hrs
0-80%: 0.8 hrs
AC Low Speed (included cable): 2.4 hrs
0-80%: 1.6 hrs
12V Car Charger (10A): 9.3 hrs
Solar Input Max 900W: 3 hrs
100W Solar Input (Boulder/Nomad 100): 11.7 hrs
200W Solar Input (Boulder/Nomad 200): 5.9 hrs
300W Solar Input (Ranger 300): 3.9 hrs
400W Solar Input (Nomad 400): 2.9 hrs
600W Solar Input (Boulder/Nomad/Ranger): 2 hrs
800W Solar Input (Boulder/Nomad/Ranger): 1.7 hrs |
| Battery Specifications: |
Battery Capacity: 998.4 Wh (51.2V, 19.5Ah)
12V Car Charger (10A): 9.3 hrs
Battery Chemistry: LiFePO4
Cycles: 4,000 Cycles (To 80% of original capacity at 25C charge and discharge)
Battery Shelf-Life: 2.47 years
300W Solar Input (Ranger 300): 3.9 hrs
400W Solar Input (Nomad 400): 2.9 hrs
600W Solar Input (Boulder/Nomad/Ranger): 2 hrs
800W Solar Input (Boulder/Nomad/Ranger): 1.7 hrs Charge Temperature Range: 32 to 104F (0 to 40C)
Discharge Temperature Range: -4 to 104F (-20 to 40C) |
| Connectivity: |
Bluetooth 4.2
Wi-Fi a/g/n
Goal Zero Power App required
Data Usage (typical) - 45KB/Hour, 1MB/Day
Data Usage (worst) - 8MB/Hour, 200MB/Day |
| Warranty: |
5 Years Manufacturer Warranty |

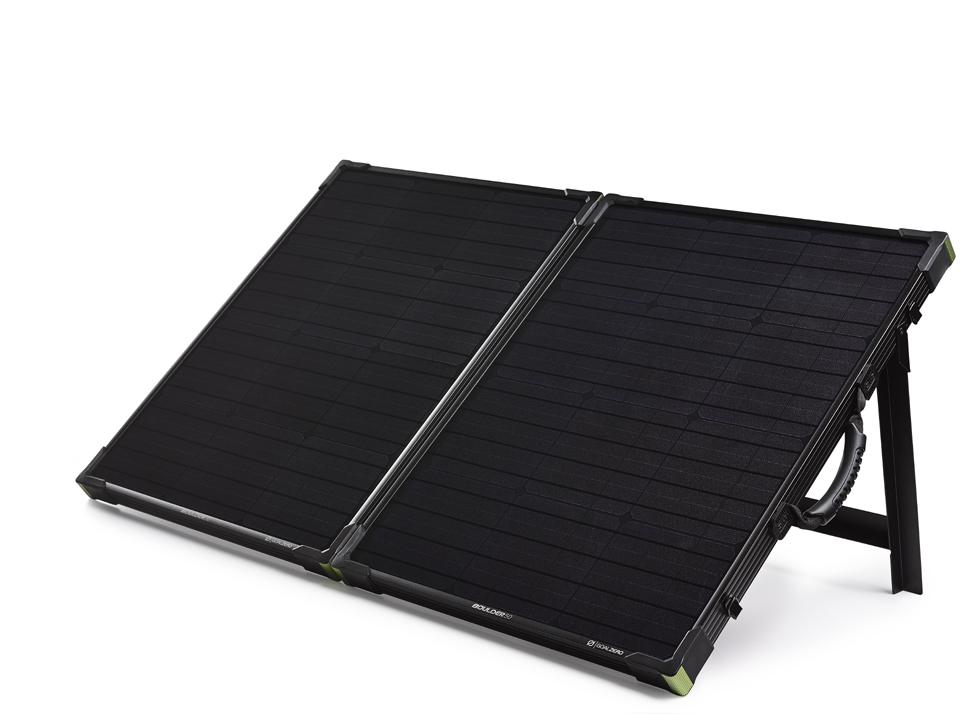

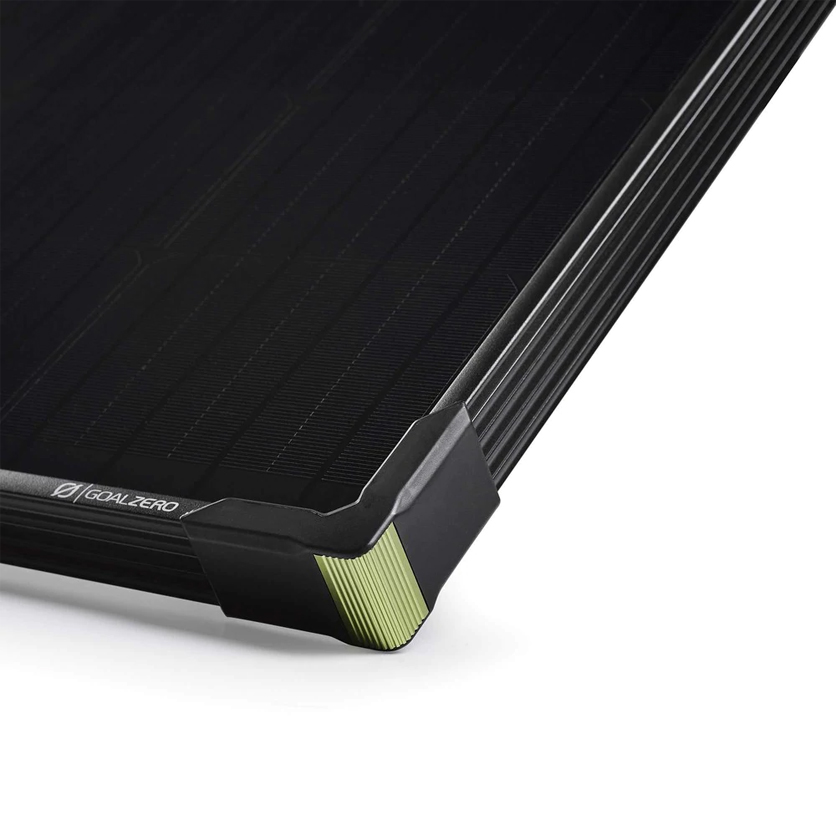

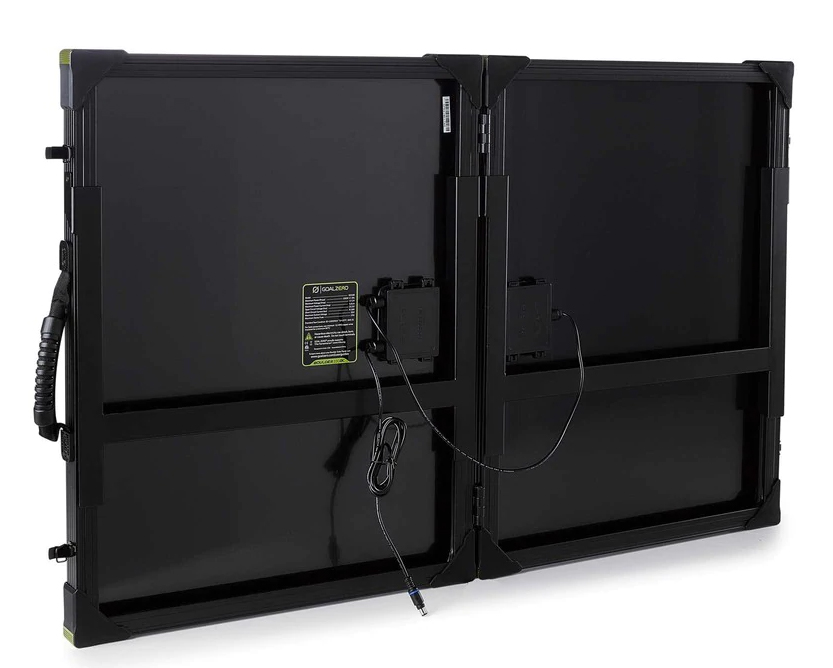

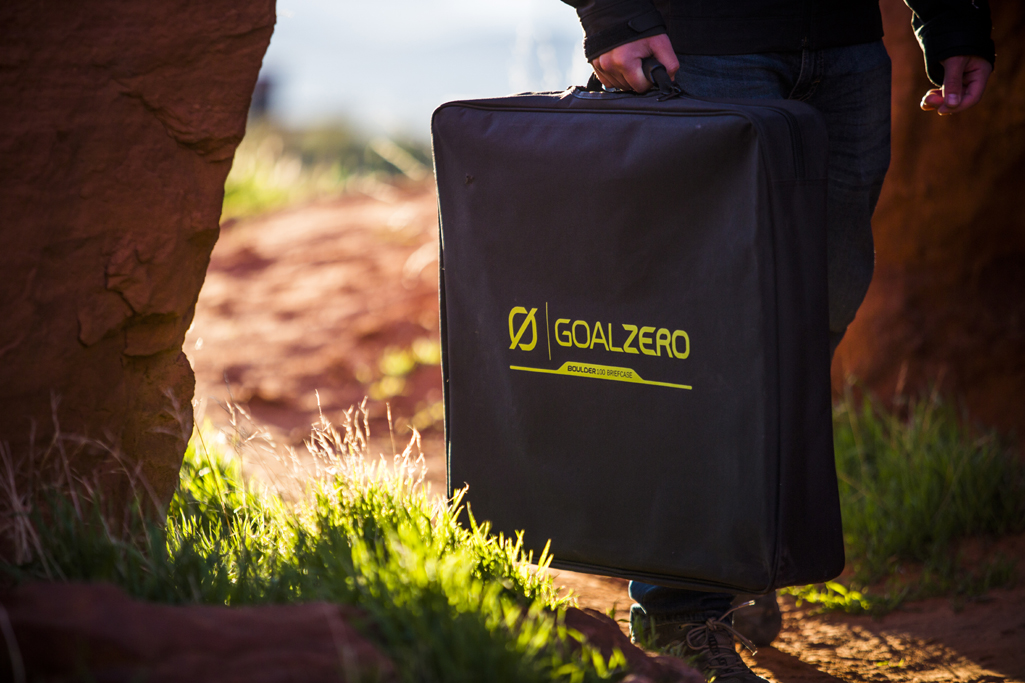

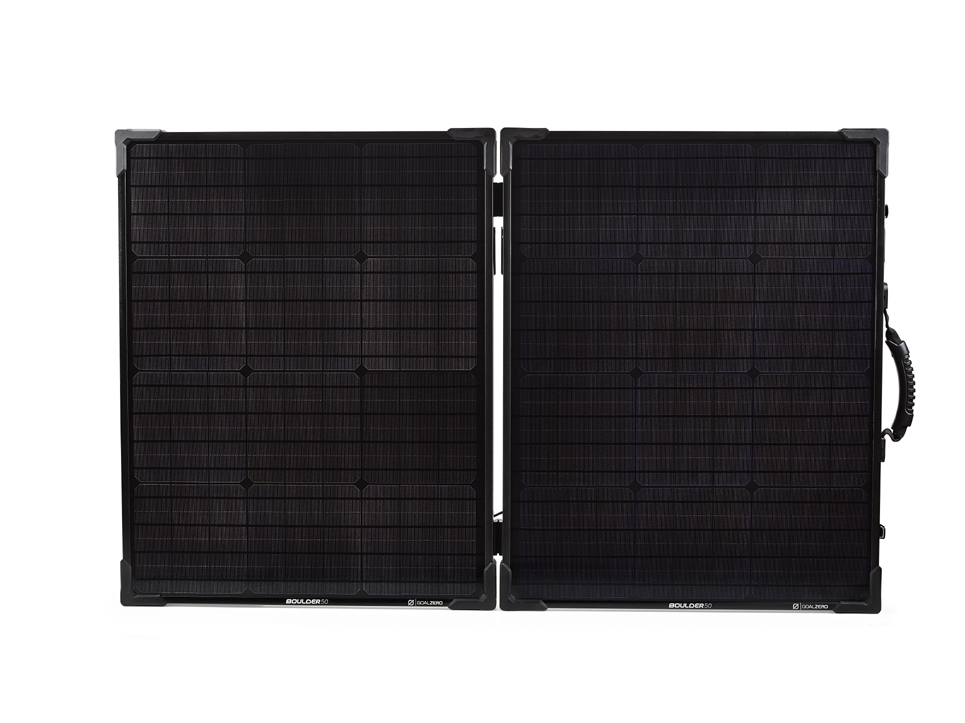

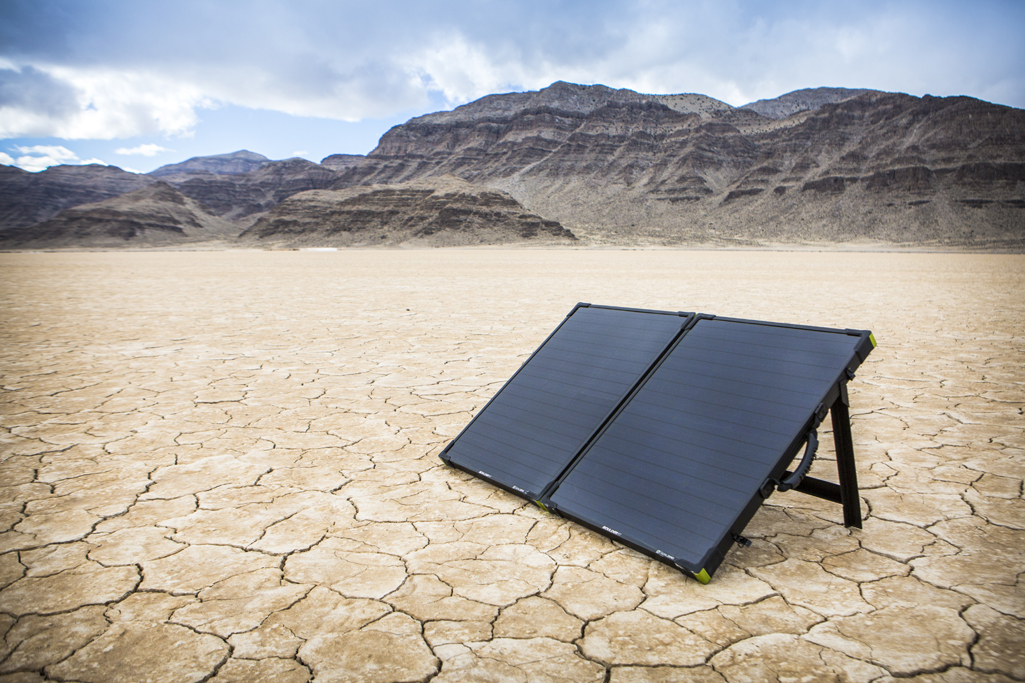

Boulder 100 Briefcase 2G Solar Panel | | Manufacturer: | BioLite |
| Product Dimensions: | Unfolded: 26.75 x 43.5 x 1.75 in (70 x 110.4 x 4.4 cm)
Folded: 26.75 x 21.75 x 3.75 in (70 x 55.2 x 8.9 cm) |
| Solar Panel Type: | Monocrystalline |
| Rated Power: | 100 Watts |
| Open Circuit Voltage: | 18-22V |
| Ports: | Solar Port (blue, 8mm): 14-22V, up to 7A (100W max) |
| Product Weight: | 25.9 lbs (11.7 kg) |
| Chainable: | Yes: Up to 400W. |
| Charges the Following: | Sherpa 50: 3 Hours
Sherpa 100: 3-4 Hours
Goal Zero Yeti 150: 3-6 Hours
Goal Zero Yeti 400: 8-16 Hours
Goal Zero Yeti 1250: 25-53 Hours
Goal Zero Yeti 1400: 29-57 Hours |
| Manufacturer Warranty: | 12 months |
