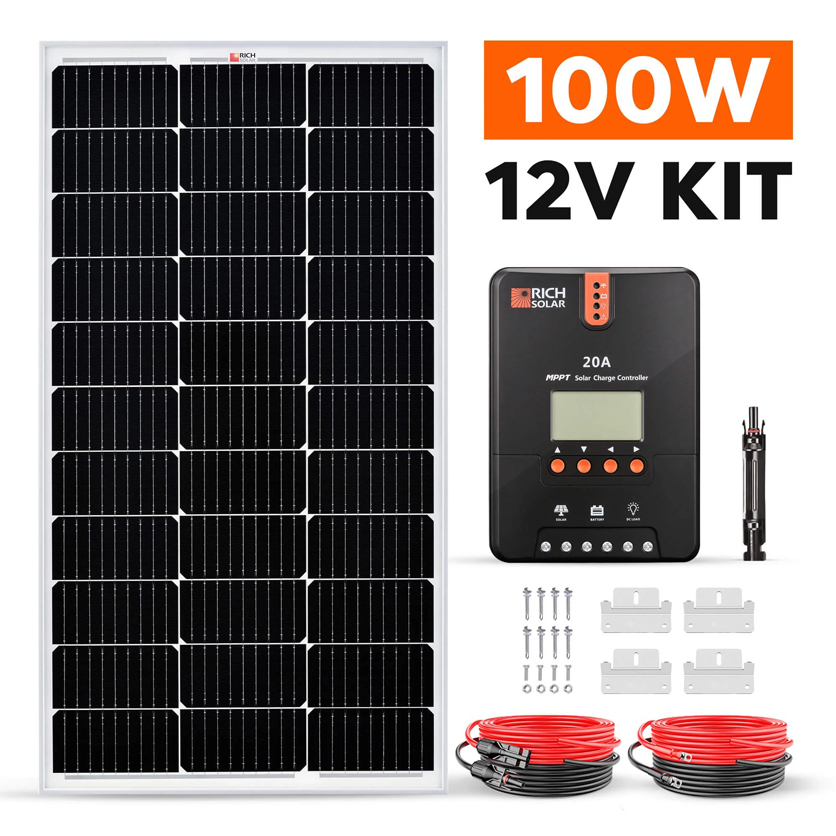

Rich Solar 100 Watt Solar Kit with 20A MPPT Charge Controller

Name: Rich Solar 100 Watt Solar Kit with 20A MPPT Charge Controller
SKU: RS-K1002
Price: 249.99 USD
Availability: InStock

Write a Review

Ask a Question

Item Code: RS-K1002

Ship Weight: 20 lbs.

Regular Price: $319.99

Sale Price: $249.99

You Save 22% ($70.00)

Product Details

Our 100W Kit is the perfect way to start your off-grid adventure! The kit includes a high efficiency 100W Monocrystalline panel with 9 busbars and a 20A MPPT controller that can handle up to 300W while charging a 12V battery bank. This kit can be paired with our 100AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat or trailer!

High Efficiency Solar Panel:

•	With the highest grade monocrystalline solar cells for optimal output, our 100 watt panel is treated with anti-reflective coating to maximize light absorption.

Simple Installation:

•	Installation is a breeze with our pre-assembled wiring harness that doesn�t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades or additions simple and easy� just plug in and go!

Reliable and Convenient:

•	The digital MPPT charge controller lets you gauge your power with a glance, providing real time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.

25-Year Output Warranty:

•	Buy with confidence knowing that your solar investment will last for the long-haul.

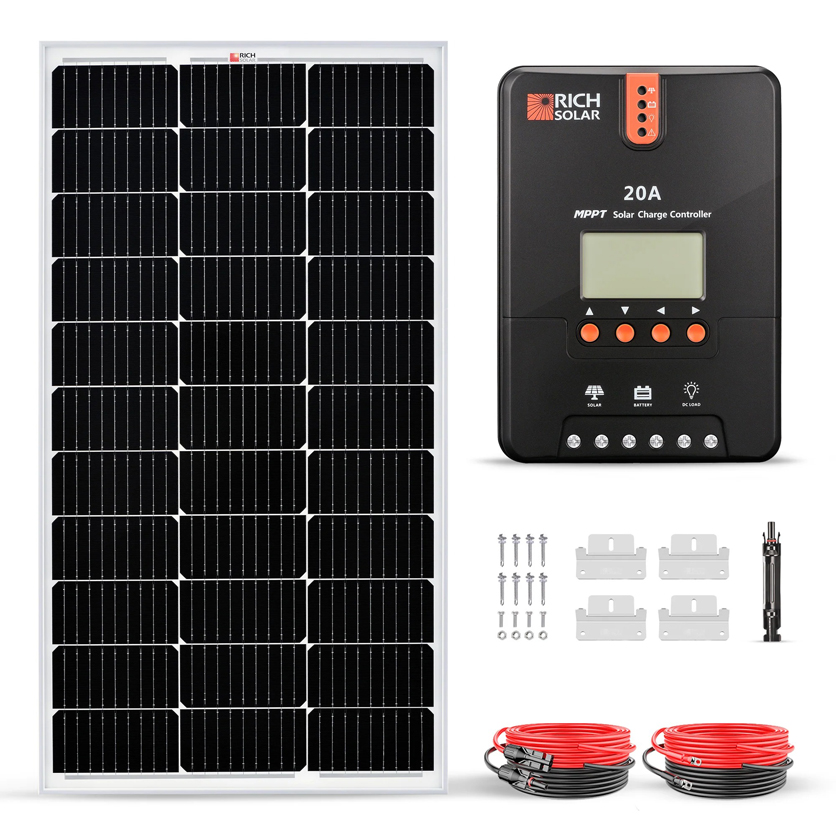

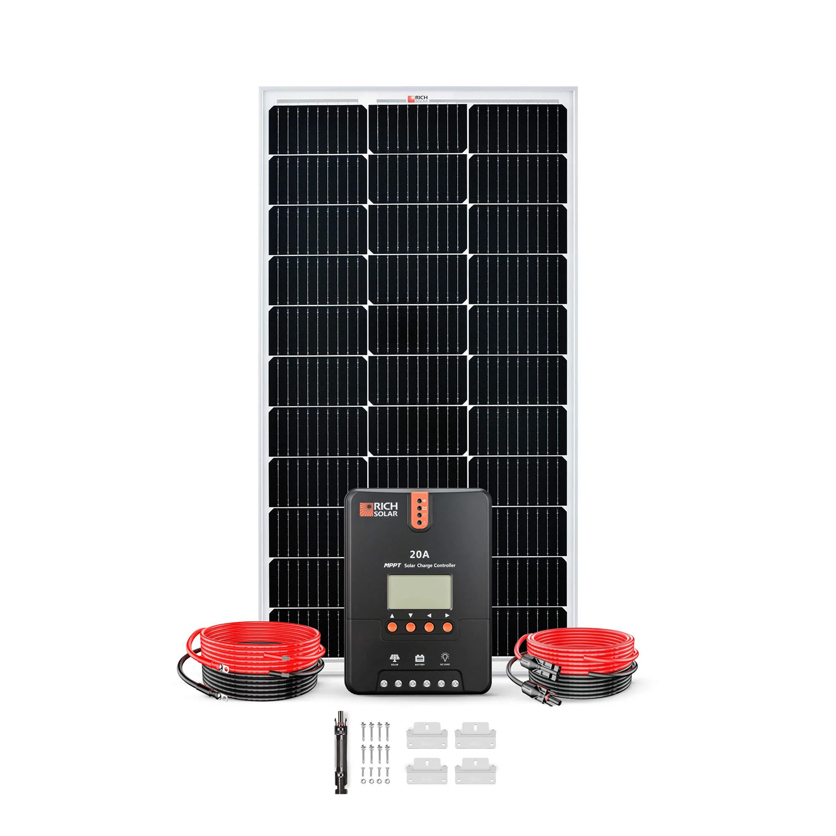

Package Includes:

•

1 x 100 Watt Monocrystalline Solar Panel
1 x 20A MPPT Solar Charge Controller
1 x 20' #10 Gauge Solar Cable (Red), connects solar panel to controller
1 x 20' #10 Gauge Solar Cable (Black), connects solar panel to controller
1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery
1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery
1 x Mounting Z Brackets (one set)
1 x 10A Inline Fuse Holder with Fuse

Specifications

Solar Panel Specifications
Manufacturer Name:	Rich Solar
Dimensions:	39" x 21.3" x 1.2" in
Weight:	13.2 lbs
Maximum Power (Pmax):	100W
Maximum Power Voltage (Vmp):	18.6V
Maximum Power Current (Imp):	5.38A
Open Circuit Voltage (Voc):	22.8V
Short Circuit Current(Isc):	5.78A
Maximum System Voltage (Vmax):	1000VDC
Maximum Series Fuse Rating:	15A
Warranty:	25 years output warranty / 10 year workingmanship warranty
Charge Controller Specifications
Manufacturer Name:	Rich Solar
Compatible:	Various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
MPPT:	Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
Protection:	Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
LCD:	LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
Features diverse load control	Also capable of charging over-discharged lithium batteries
Design:	Die-cast aluminum design allows for efficient heat dissipation
Bluetooth:	RS232 port to communicate with BT-1 Bluetooth module
Warranty:	2 year warranty
Nominal System Voltage:	12V/24V Auto Recognition
Rated Battery Current:	20A
Rated Load Current:	20A
Max. PV Input Short Current:	25A
Max. Battery Voltage:	32V
Max Solar Input Voltage:	100 VDC
Net Weight:	3.08 lb
Discharge Circuit Voltage Drop:	≤0.15V
Overall Dimensions:	8.27 x 5.94 x 2.34 in

What's Included

What's Included:

• (1) 100 Watt Monocrystalline Solar Panel
• (1) 20A MPPT Solar Charge Controller
• (1) 20' #10 Gauge Solar Cable (Red)
• (1) 20' #10 Gauge Solar Cable (Black)
• (1) 10' #10 Gauge Battery Cable (Red)
• (1) 10' #10 Gauge Battery Cable (Black)
• (1) Mounting Z Brackets (one set)
• (1) 10A Inline Fuse Holder with Fuse
