In Stock
Earthtech Products Solar Sign & Landscape Light Kit - 1 Light (6000 Lumens), 2 - 100W Solar Panels, 1 - 140 Ah Battery - 8 Hour Run Time
Item Code: SSLK7-Z3
Ship Weight: 230.5 lbs.
Regular Price: $3,999.00
Sale Price: $3,699.00
You Save 8% ($300.00)
Product Details
Our Solar Sign & Landscape Light Kit is the most reliable, powerful, lighting kit on the market. Fully Assembled right here in the United States; illuminating your Commercial Size Signs, Statues, Monuments and Billboards has never been easier. Achieve peace of mind with remote monitoring, 3 day autonomy and zero grid-reliance.
Best Uses and Key Features:
High Efficiency Poly-Crystalline Solar Panel:
Wireless Ultra-Fast MPPT Solar Charge Controller:
Solar Charge Controller Smart Device Application:
Long-Lasting AGM Battery:
High-End Flood Light Fixture:
Powder Coated Aluminum Battery Box:
Aluminum Nema 3R Enclosure (Front & Back):
Zone Map:
Explanation of Solar Zones:
Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!
By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.
Installation Tips:
Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.
When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)
Please Note: This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
Custom Solar Lighting Form - Need Help Finding the Perfect Lighting Kit? No Problem!
Get a Personalized Quote for Custom Solar Powered Low Voltage Sign, Landscape, Street/Municipal, Indoor/Outbuilding Lighting Systems
Best Uses and Key Features:

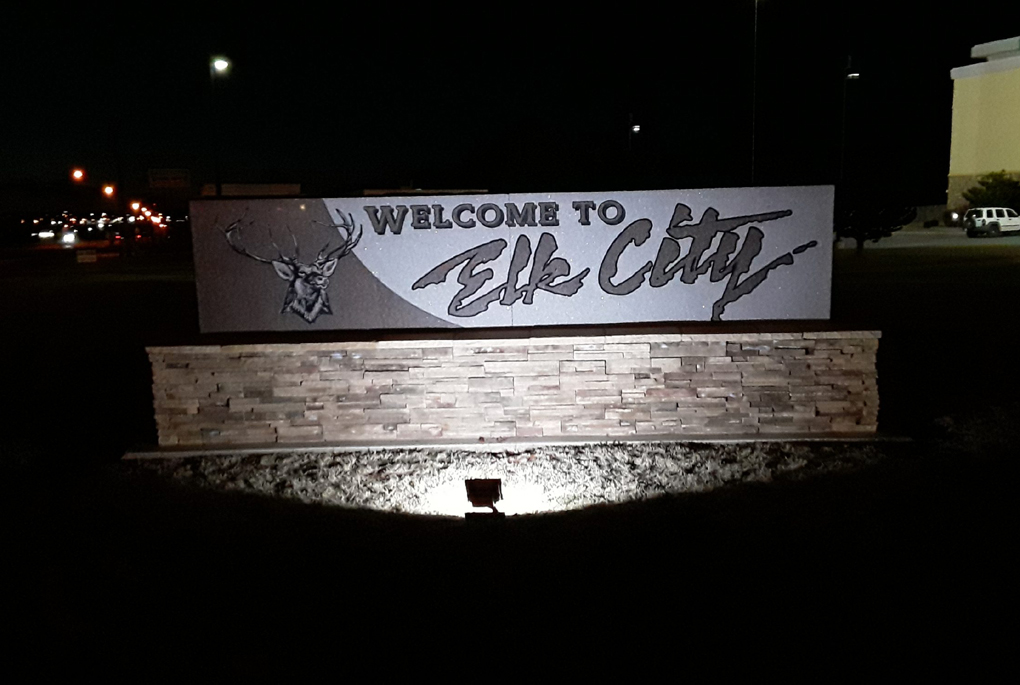

• | Perfect for Commercial Size Signs, Billboards, Monuments, Entrances, Store Fronts, Landscapes, Fountains, Home Up-lighting, and so much more! |
• | Our Custom Lighting Kits only include the highest-end components. Pre-Wired, Pre-Configured, Plug and Play for Easy Set Up |
• | 5+ Year Warranty on All Major Components! (Compared to industry standard 1 year warranty) |
• | In-built 3 Day Autonomy means you will see Reliable Operation regardless of weather conditions and overcast days. |
• | Set up Custom Run Times directly from your Phones and Tablets with the User Friendly Mobile Application! |
• | Our Polycrystalline Solar Panels undergo rigorous quality control to meet the highest international standards |
• | The Unique frame is designed with high mechanical strength for easy installation and long lasting performance |
• | Outstanding electrical performance under high temperature and low irradiance conditions. |
• | Includes 5 Yr limited warranty on materials & workmanship and 25 Yr on >80% power output and 10 Yr on >90% power output. |
• | Features built-in Bluetooth APP connectivity for wireless set-up, monitoring and update capabilities. |
• | Features Ultra-fast Maximum Power Point Tracking Technology. Even in clouded sky conditions, when light intensity is changing continuously, this ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. |
• | Software allows for Day/Night timing and light dimming options for full customization! |
• | Includes Extended 5 Year Manufacturer Warranty! |
Solar Charge Controller Smart Device Application:
• | Includes replaceable AGM Lead Acid Battery with Prorated 5 Year Manufacturer Warranty! |
• | Features 50,000+ Hour guaranteed lifespan. |
• | The High Quality LEDs output a massive 6000 Lumens! |
• | Includes Extended 5 Year Manufacturer Warranty for guaranteed longevity! |
• | Flood light is CE, Rohs IP65 Certified. |
• | Includes Powder Coated Aluminum Nema 3R Enclosure for long lasting performance |
• | The Pad lockable latch means secure installation no matter the location. |
• | UV Resistant build with high temperature silicon for reliable operation in the harshest of conditions. |
Zone Map:
Explanation of Solar Zones:
Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!
By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.
Installation Tips:
Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.
When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)
Please Note: This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
Custom Solar Lighting Form - Need Help Finding the Perfect Lighting Kit? No Problem!
Get a Personalized Quote for Custom Solar Powered Low Voltage Sign, Landscape, Street/Municipal, Indoor/Outbuilding Lighting Systems
Specifications
SPECIFICATIONS: LIGHT | |
Power: | 50 Watt (1 x 50 watt light) |
Comparable to: | 300 Watt Metal Halide |
Dimensions: | 11.22" x 9.25" x 5.91" |
DC Voltage: | 12 Volts |
Certifications: | UL, CE, Rohs IP65 |
Life Span: | 50,000 Hours |
Warranty: | 5 years |
SPECIFICATIONS: SOLAR | |
Power: | 2 - 100 Watt Panels |
Dimensions Per Panel: | 39.1" x 78" |
Weight per Panel: | 59 lbs |
Voltage (VOC)/Current (IMP): | 37.7 Volts DC/8.15 Amps |
Module Efficiency: | 18% |
Operating Temperature: | -40C to 85C |
Certifications: | ETL UL CE IEC ISO TUV |
Warranty: | 10 yr Product 25 yr Power >80% |
SPECIFICATIONS: MPPT Charge Controller | |
Charge Controller: | 15 Amp |
Charge Controller Warranty: | 5 years |
Time Control Setting: | Dusk until Dawn/Custom Run Times |
Controller Type: | MPPT |
Max PV Open Circuit Voltage: | 75V |
Peak Efficiency: | 98% |
Max Cont. Load Current: | 15A |
Operating Temperature: | -30 to +60C (full rated output up to 40°C) |
Protection: | Battery reverse polarity (fuse) / Output short circuit / Over temperature |
SPECIFICATIONS: OTHER COMPONENTS | |
Battery: | (1) 12 Volt AGM battery, 140 amp hours |
Battery Warranty: | Prorated 5 year |
Charge Controller: | 15 Amp |
Charge Controller Warranty: | 5 years |
Time Control Setting: | 2 - 12 hours, Dusk until Dawn |
Housing Box: | Fiberglass, NEMA4 |
Housing Box Warranty: | 5 years |
Solar/Light Connecting Cord: | 16.4ft (5 Meters) |
Solar Panel Racking: | Top of Pole Mount System - *Pole not Included |
Battery Life Between Charge: | Up to 48 Hours |
F.A.Q.
Frequently Asked Questions:
Q: How do I install this Solar Light Kit? Do I need to setup any wires?
A: There is no need for digging costly trenches for long distances to run wire underground from an electric source. Simplified, all you need to do is just place them where they are needed and set up the solar panels where they can get the most sunlight. It's that easy.
Q: Aside from the Solar Panels and LED light, what else is included in this kit?
A: The following components are included with this solar kit: 3 Solar Panels, LED Light, Housing Box with Battery, Charge Controller, Panel Top of Pole Mount and a Power Connecting Cord. It's everything you possibly need to set up a good working solar landscape light.
Q: Can I leave it outside? Is this Solar Landscape Light waterproof?
A: In order to last a very long time, this Solar Kit has been designed to be very durable. It is waterproof and has a durable enclosure guaranteeing that you can place it just about anywhere you need superior lighting.
Q: How do I install this Solar Light Kit? Do I need to setup any wires?
A: There is no need for digging costly trenches for long distances to run wire underground from an electric source. Simplified, all you need to do is just place them where they are needed and set up the solar panels where they can get the most sunlight. It's that easy.
Q: Aside from the Solar Panels and LED light, what else is included in this kit?
A: The following components are included with this solar kit: 3 Solar Panels, LED Light, Housing Box with Battery, Charge Controller, Panel Top of Pole Mount and a Power Connecting Cord. It's everything you possibly need to set up a good working solar landscape light.
Q: Can I leave it outside? Is this Solar Landscape Light waterproof?
A: In order to last a very long time, this Solar Kit has been designed to be very durable. It is waterproof and has a durable enclosure guaranteeing that you can place it just about anywhere you need superior lighting.

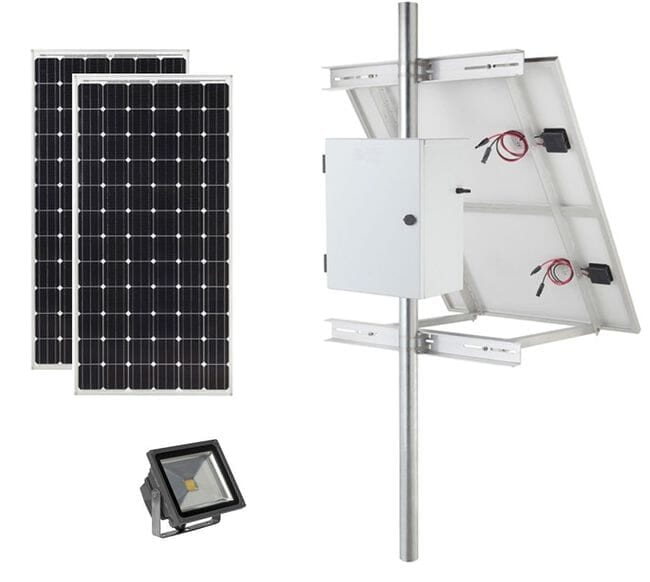

What's Included
What's Included:
• (2) 100 Watt Solar Panels
• (1) 50 Watt LED Light (300 Watt Metal Halide Equivalent)
• (1) Housing Box
• (1) 140 Ah Batteries
• (1) 15 Amp MPPT Charge Controller
• (1) Panel Side of Pole Mount. *Pole not included.
• (1) 16.4' Power Connecting Cord
• (1) Overcurrent Protection
• (2) 100 Watt Solar Panels
• (1) 50 Watt LED Light (300 Watt Metal Halide Equivalent)
• (1) Housing Box
• (1) 140 Ah Batteries
• (1) 15 Amp MPPT Charge Controller
• (1) Panel Side of Pole Mount. *Pole not included.
• (1) 16.4' Power Connecting Cord
• (1) Overcurrent Protection
