The Solar Shed Lighting Kit will provide your sheds, garages and cabins with bright white light when you need it most. Install this in your home and make every bit of sunshine count. Experience off-grid illumination like never before. Achieve peace of mind with remote monitoring, 3 day autonomy and zero grid-reliance.
Best Uses and Key Features:
Illuminate your Shed, Garage or Cabin with this High-End Solar Lighting Kit. Features a lumen output of 2,635! |
Our Custom Lighting Kits only include the highest-end components. Pre-Wired, Pre-Configured, Plug and Play for Easy Set Up
5+ Year Warranty on All Major Components! (Compared to industry standard 1 year warranty)
In-built 3 Day Autonomy means you will see Reliable Operation regardless of weather conditions and overcast days.
Set up Custom Run Times directly from your Phones and Tablets with the User Friendly Mobile Application!
High Efficiency Poly-Crystalline Solar Panels:
Our Polycrystalline Solar Panels undergo rigorous quality control to meet the highest international standards
The Unique frame is designed with high mechanical strength for easy installation and long lasting performance
Outstanding electrical performance under high temperature and low irradiance conditions.
Includes 5 Yr limited warranty on materials & workmanship and 25 Yr on >80% power output and 10 Yr on >90% power output.
Wireless Ultra-Fast MPPT Solar Charge Controller:
Solar Charge Controller Smart Device Application:
Features built-in Bluetooth APP connectivity for wireless set-up, monitoring and update capabilities.
Features Ultra-fast Maximum Power Point Tracking Technology. Even in clouded sky conditions, when light intensity is changing continuously, this ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Software allows for Day/Night timing and light dimming options for full customization!
Includes Extended 5 Year Manufacturer Warranty!
Long-Lasting AGM Battery:
Includes replaceable AGM Lead Acid Battery with Prorated 5 Year Manufacturer Warranty!
High-End 4 Ft Light Fixture:
Features 100,000+ Hour guaranteed lifespan.|
The High Quality 20 Watt Light Fixture Outputs 3100 Lumens!
Includes Extended 7 Year Manufacturer Warranty for guaranteed longevity!
Flood light is UL, CE, Rohs, IP65 Certified.
Powder Coated Aluminum Battery Box:

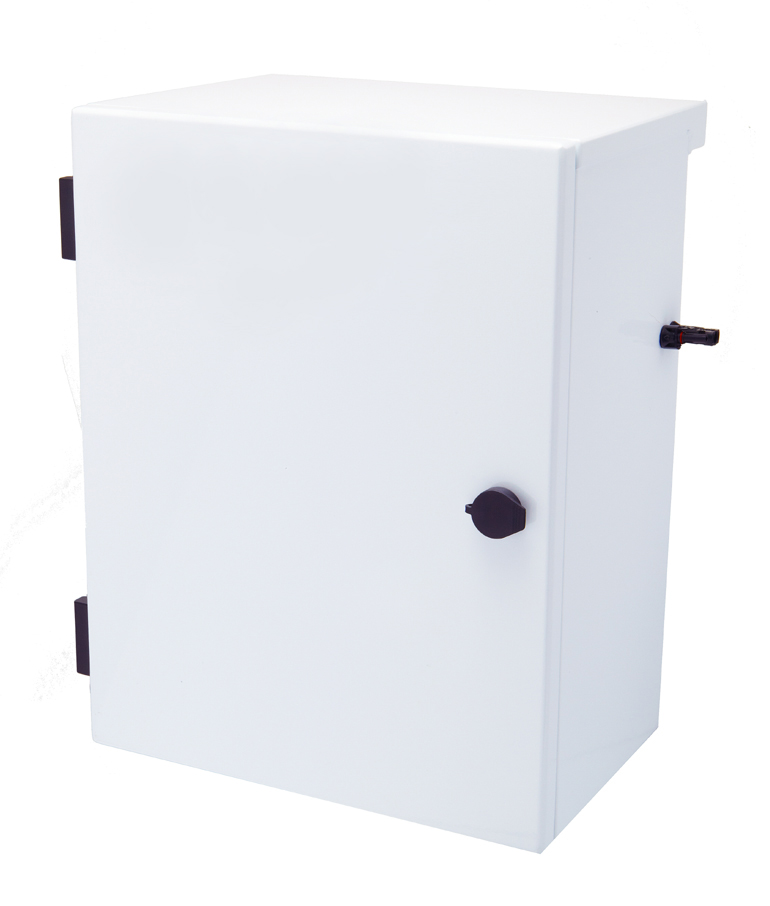

Aluminum Nema 3R Enclosure (Front & Back):
Explanation of Solar Zones:
Includes Powder Coated Aluminum Nema 3R Enclosure for long lasting performance|
The Pad lockable latch means secure installation no matter the location.
UV Resistant build with high temperature silicon for reliable operation in the harshest of conditions.
Our kits are designed for three-day autonomy. This means you will see full operation even after receiving no sunlight for 3 full days!
By finding your location on the above map. You can determine which Solar Zone your installation will be located in. This information displays the Historical Peak Sun Hours in the worst month of the year with solar panels at a 45 degree angle.
Make sure your intended location for the solar panel receives direct sunlight between 9 AM and 3 PM.
When installing the panel, make sure it is facing solar south. (South on Google Maps is solar south)
This product ships via freight carrier. You will need to be present for delivery. Carrier will contact you by phone regarding expected time of delivery.
Custom Solar Lighting Form - Need Help Finding the Perfect Lighting Kit? No Problem!
Get a Personalized Quote for Custom Solar Powered Low Voltage Sign, Landscape, Street/Municipal, Indoor/Outbuilding Lighting Systems
SPECIFICATIONS: Solar Power & Lighting Kit
|SOLAR PANEL |
| Maximum Power Pmax: || 100W |
| Open Circuit Voltage Voc: || 22.0V |
| Short Circuit Current Isc: || 6.29 A |
| Voltage at Maximum Power Point Vmpp: || 18.5 V |
| Current at Maximum Power Point Impp: || 5.42 A |
| Dimensions: || 47.0" x 21.1" x 1.57" |
| Module Efficiency (%): || 15.60% |
| Weight: || 17.6 lbs |
| BATTERY |
| Voltage: || 12 Volt |
| Ampacity: || 35 Amp Hour |
| Weight: || 24 lbs |
| PLUG and PLAY System |
| Nominal system voltage: || 12 Volt |
| Max. Solar input voltage: || 30 Volt |
| Max. solar current: || 10 Amp |
| Battery voltage range: || 6 Volt - 15 Volt |
| Self-consumption: || < 8 milli Amp |
| Max DC output for lights: || 4 Amp (48 Watts peak) |
| Max DC output for Inverter: || 35 Amp (420 Watts peak) |
| Battery Charging Regulation Method: || 4 stage PWM (bulk, absorption, float, equalize) |
| Temp. Compensation Coefficient: || -30 mV / °C (25°C reference) |
| Temp. Compensation Range: || - 30°C to + 60°C |
| Temp. Compensated Setpoints: || Absorption (14.1 Volt), Float (13.7 Volt), Equalize |
| Low Voltage Disconnect: || 11.5 Volt |
| Low Voltage Reconnect: || 12.6 Volt |
| High Voltage Disconnect: || 15.3 Volt |
| High Voltage Reconnect: || 14 Volt |
| LED LIGHT and FIXTURE |
| Operation hours: || > 80,000 hours |
| Luminous Flux: || 2635 Lumens |
| Color Rendering Index: || 80 Ra |
| Environmental Operating Temperature: || -20 to 50C |
| Environmental Operating Humidity: || >95% |
| Power factor: || 0.95 |
| Power Input: || 20 W |
| Short Current: || < 5mA |
| Warranty: || 5 years |
• (1) 20w 4 ft LED Tube Light
• (1) 35 Amp Hour Battery
• (1) 100w Solar Panel
• (1) Charge Controller
• (1) Fiberglass Battery Box
• (1) Roof Flashing Racking
• (1) Set of Cables
• (1) Set of Fixtures
• (1) Set of Connectors
